Removal [11/2018 - 10/2023]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 8 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 10/2023]

  5. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  6. REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

    Refer to PROCEDURE - Step 4

  7. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Pull back the rear door opening trim weatherstrip LH so that the rear seat side garnish LH can be removed.

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 39 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 39 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 39 [08/2020 - 10/2023]

  10. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 1 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 1 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 1 [08/2020 - 10/2023]

  11. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 2 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - 10/2023]

  12. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 4 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 4 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 10/2023]

  13. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 10 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 10 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - 10/2023]

  14. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 21 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 21 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 21 [08/2020 - 10/2023]

  15. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 42 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 42 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 42 [08/2020 - 10/2023]

  16. REMOVE TETHER ANCHOR BRACKET SET

    Refer to PROCEDURE - Step 41 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 41 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 41 [08/2020 - 10/2023]

  17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 43 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 43 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 43 [08/2020 - 10/2023]

  18. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

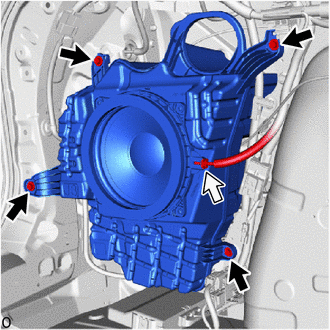

    1. Disconnect the connector.
      GTY911010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Remove the 4 bolts.

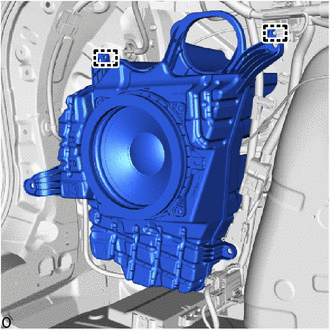

    3. Detach the guide and remove the rear No. 2 speaker assembly.
      GTY923697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
