Removal [09/2016 - 05/2019]: Procedure

PRECAUTION
NOTE:
- After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
  Refer to PRECAUTION [09/2016 - 01/2018] , or refer to PRECAUTION [01/2018 - 05/2019]
- When replacing the auxiliary battery with a new one, use an auxiliary battery with the same physical dimensions (LN 1), a cold cranking ampere (CCA) 295 A or more, and a 20-hour rate capacity of 45 Ah or more.

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AUXILIARY BATTERY

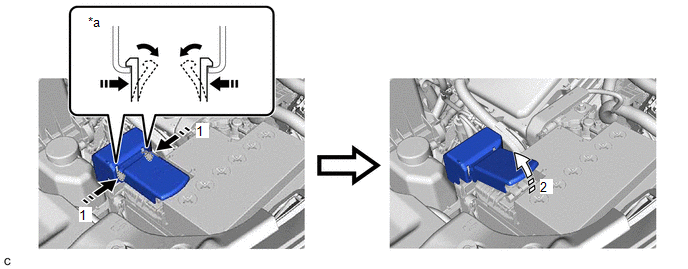

Disengage the 2 claws and open the battery terminal cap in the order shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Top View of Claws	-	-
	Push Battery Terminal Cap Here		Push
	Open	-	-

Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.

Remove the bolt.

Remove the No. 2 battery clamp as shown in the illustration.

Remove the auxiliary battery.
w/ Battery Insulator:
1. Remove the battery insulator from the auxiliary battery.
