Replacement [11/2020 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022] , or refer to REMOVAL [12/2022 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  2. REMOVE TELEPHONE AND GPS ANTENNA WITH COVER

    Refer to PROCEDURE - Step 3 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 3 [12/2023 - ]

  3. REMOVE CENTER STOP LIGHT COVER LH

    Refer to PROCEDURE - Step 1

  4. REMOVE CENTER STOP LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING LH

    See step  1

  7. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF OUTSIDE COVER
    NOTE:
    • The panels around the roof panel can easily become dented. Do not apply larger loads than necessary.
    • Do not damage the roof panel.

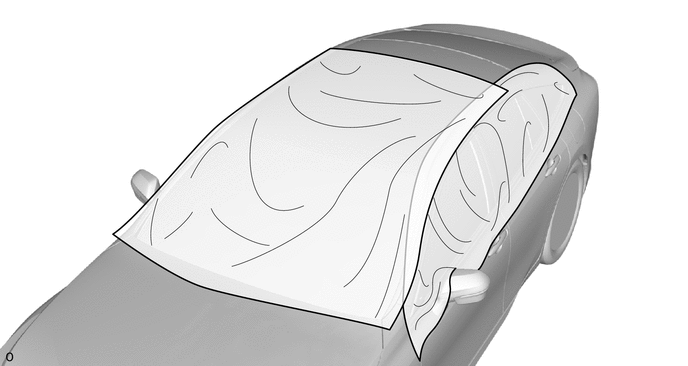

    1. Using a protective cover or protective film, protect the glass and body panel as shown in the illustration.
      GTY1167545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

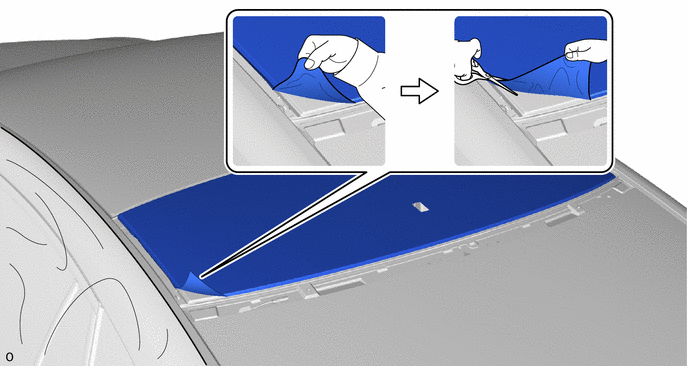

    2. Pull the roof outside cover and slowly remove it while making slits in it with scissors for easy removing as shown in the illustration.
      GTY1160742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the body panel when using tools such as scissors.

      HINT:

      Pulling the roof outside cover in a vertical direction will reduce the amount of residual adhesive remaining on the panel.

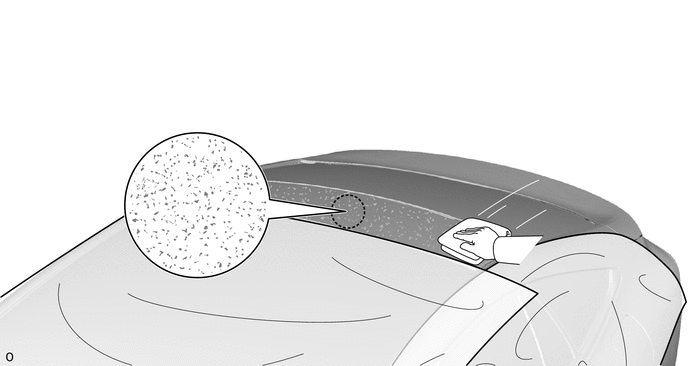

    3. Soak a cloth in isopropyl alcohol or equivalent and wipe off the entire roof panel with it.
      GTY1167595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Isopropyl alcohol is hazardous. When using it, make sure to wear gloves, protective glasses and a respirator.

  9. INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING LH

    See step  2

  10. INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  11. INSTALL CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. INSTALL CENTER STOP LIGHT COVER LH

    Refer to PROCEDURE - Step 2

  13. INSTALL CENTER STOP LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  14. INSTALL TELEPHONE AND GPS ANTENNA WITH COVER

    Refer to PROCEDURE - Step 2 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - ]

  15. INSTALL ROOF HEADLINING ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023] , or refer to INSTALLATION [12/2023 - ]
