Installation [11/2020 - ]: Procedure

  1. INSTALL CENTER STOP LIGHT ASSEMBLY
  2. INSTALL CENTER STOP LIGHT COVER LH

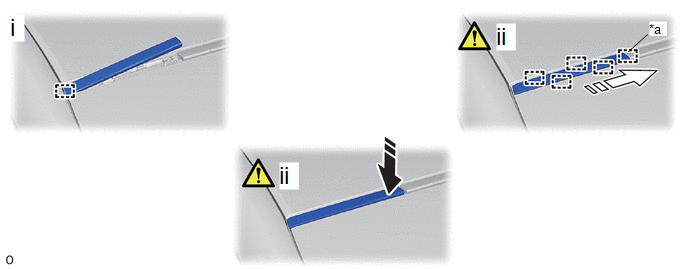

    1. GTY992706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook - -
      Install in this Direction (1) Install in this Direction (2)
      1. Align the guide of the center stop light cover LH on the outside of the vehicle.
      2. Set the center stop light cover LH in the installation direction (1), slide it toward the installation direction (2) to attach the hook and guide, and install the center stop light cover LH.
  3. INSTALL CENTER STOP LIGHT COVER RH
    1. Use the same procedure described for the LH side.
