Removal [11/2020 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT COVER LH

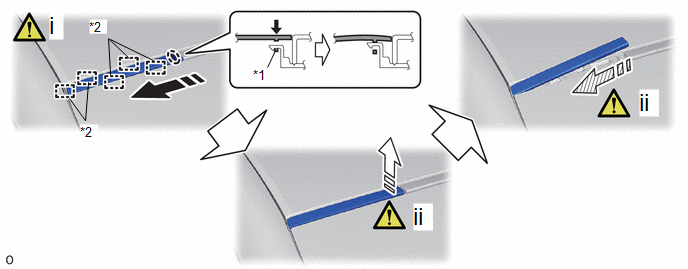

    1. GTY992907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hook *2 Guide
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) Place Hand Here
      1. While pushing the location shown in the illustration, slide the center stop light cover LH toward the outside of the vehicle in the removal direction (1) and detach the hook and guide.
      2. Lift the center stop light cover LH on the inside of the vehicle in the removal direction (2) and remove it in the removal direction (3).
  2. REMOVE CENTER STOP LIGHT COVER RH
    1. Use the same procedure as for the LH side.
  3. REMOVE CENTER STOP LIGHT ASSEMBLY

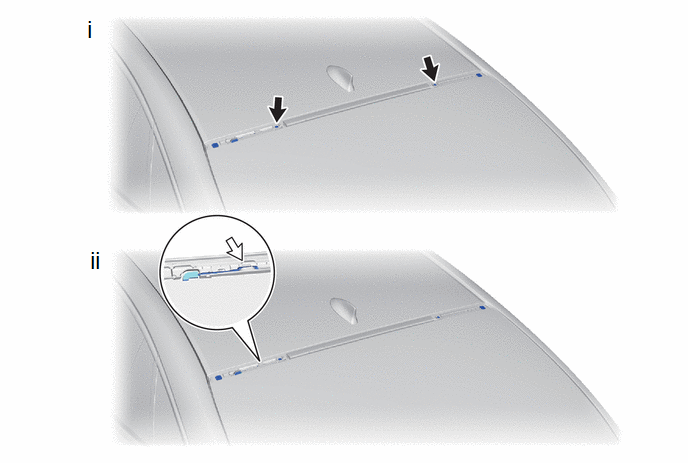

    1. GTY992582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Connector
      1. Remove the 2 screws.
      2. Disconnect the connector.

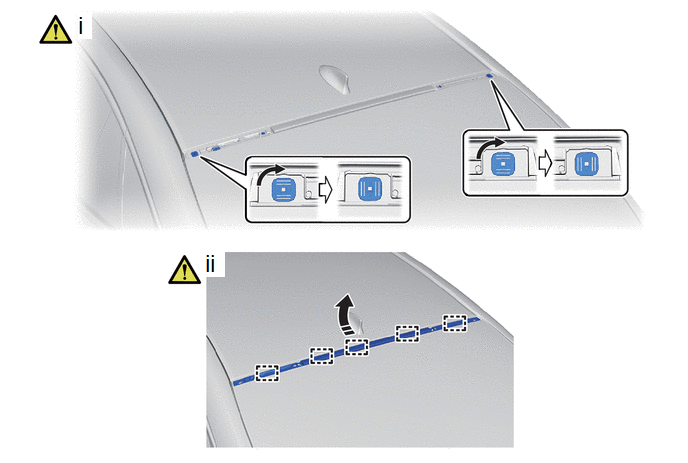

    2. GTY992160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver, turn the clip 90° and remove it.

        HINT:

        Use the same procedure for the other side.

      2. Turn the center stop light assembly at the vehicle front side in the removal direction to detach the guide and remove the center stop light assembly.
