Disassembly [11/2020 - ]: Procedure

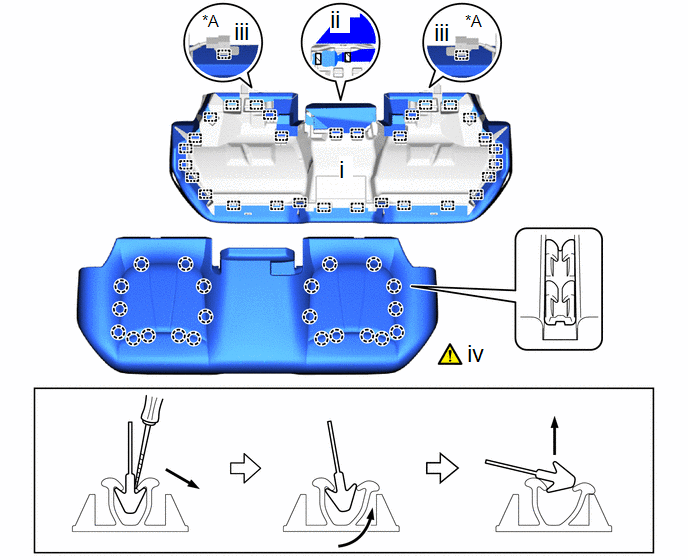

  1. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Be careful not to dirty or damage the bench type rear seat cushion cover and rear seat cushion pad sub-assembly.
    1. GTY1016737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System - -
      1. Detach the hook.
      2. Detach the fastening tape.
      3. w/ Seat Heater System:

        1. Detach the clamp.

      4. Using a thin-bladed screwdriver, detach the claw to remove the bench type rear seat cushion cover from the rear seat cushion pad sub-assembly as shown in the illustration.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  2. REMOVE SEAT CUSHION HEATER ASSEMBLY RH (w/ Seat Heater System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  3. REMOVE SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)
    1. Use the same procedure described for the RH Side.

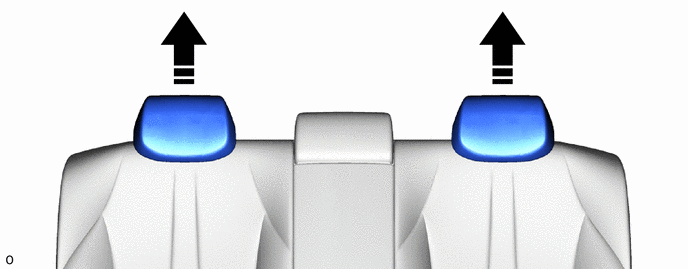

  4. REMOVE REAR SEAT HEADREST ASSEMBLY
    1. GTY1016869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

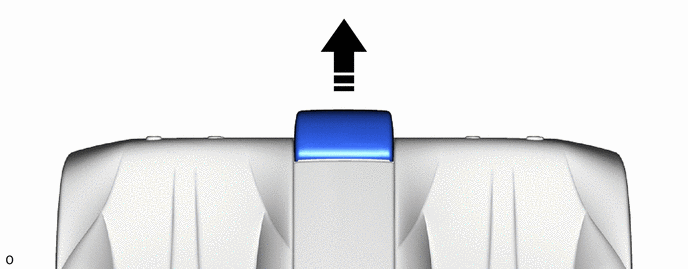

  5. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
    1. GTY1017443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

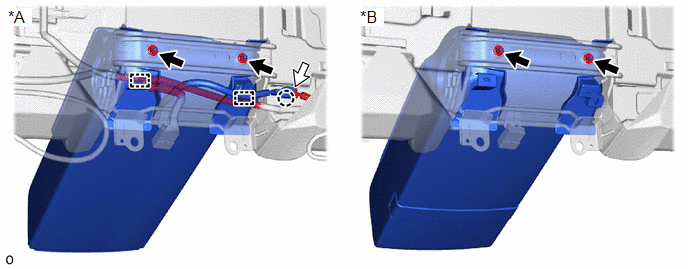

  6. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY
    1. GTY1016482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Combination Switch *B w/o Combination Switch
      Nut Connector

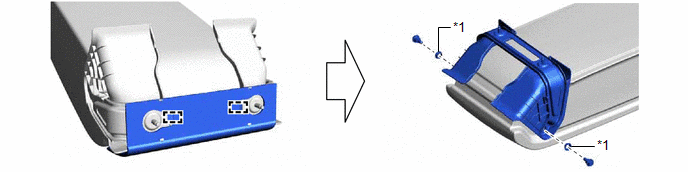

  7. REMOVE REAR CENTER SEAT ARMREST HINGE
    1. GTY1015807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Seat Stopper Plate - -

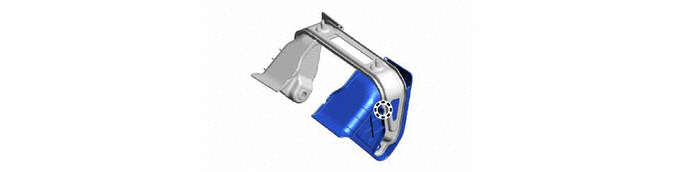

  8. REMOVE CENTER ARMREST HINGE COVER RH
    1. GTY1016329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CENTER ARMREST HINGE COVER LH
    1. Use the same procedure described for the RH Side.
  10. REMOVE COOLER CONTROL SWITCH ASSEMBLY (w/ Combination Switch)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  11. REMOVE CUP HOLDER ASSEMBLY

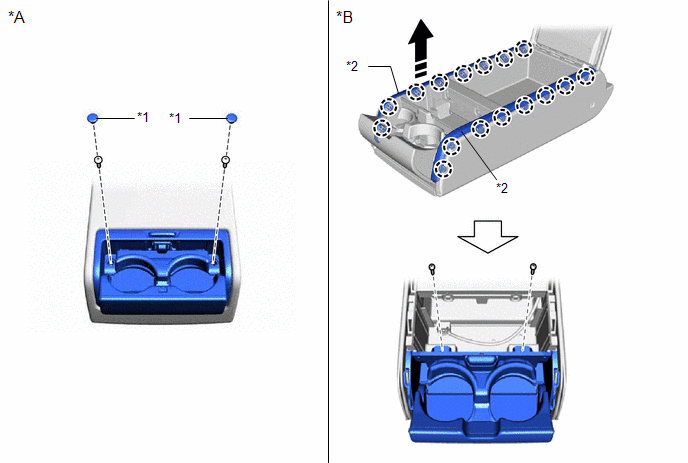

    1. GTY1017722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Combination Switch *B w/ Combination Switch
      *1 Rear Center Seat Armrest Cover *2 Rear Seat Armrest Plate
      Remove in this Direction - -
  12. REMOVE HEADREST SUPPORT

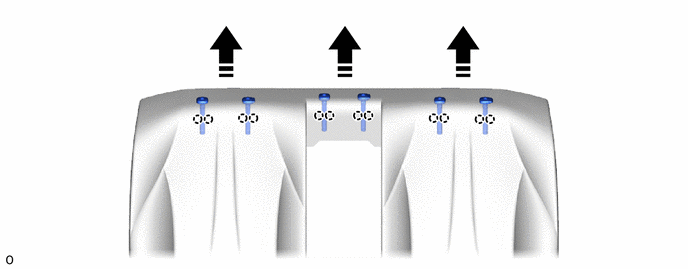

    1. GTY1017137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  13. REMOVE BENCH TYPE REAR SEATBACK COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Be careful not to dirty or damage the bench type rear seatback cover and rear seatback pad sub-assembly.

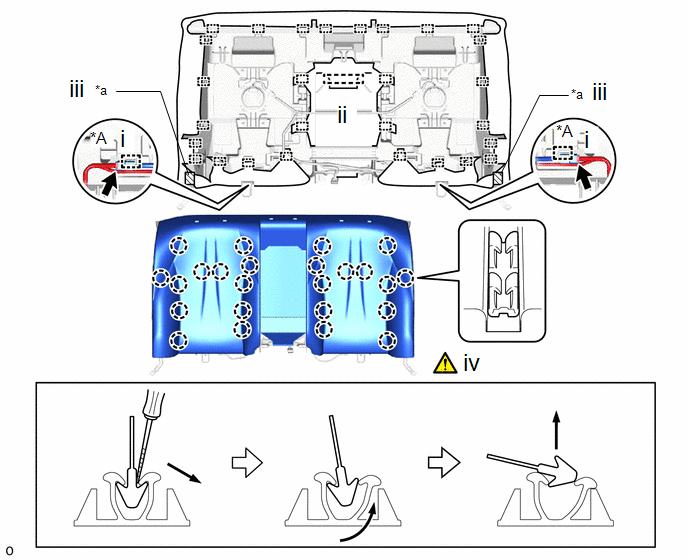

    1. GTY1016571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System - -
      *a Fastening Tape - -
      1. w/ Seat Heater System:

        1. Disconnect the 2 connectors and detach the clamp.

      2. Detach the hook.
      3. Detach the fastening tape.
      4. Using a thin-bladed screwdriver, detach the claw to remove the bench type rear seatback cover from the rear seatback pad sub-assembly as shown in the illustration.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  14. REMOVE SEATBACK HEATER ASSEMBLY RH (w/ Seat Heater System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 10
  15. REMOVE SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)
    1. Use the same procedure described for the RH Side.
  16. REMOVE REAR NO. 1 SEAT WIRE (w/ Seat Heater System)

    HINT:

    The illustrations are representative examples, and details may differ.

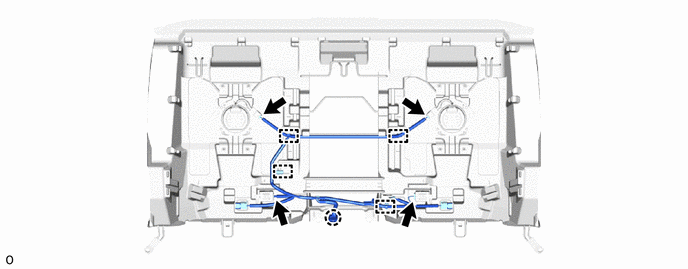

    1. GTY1017222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

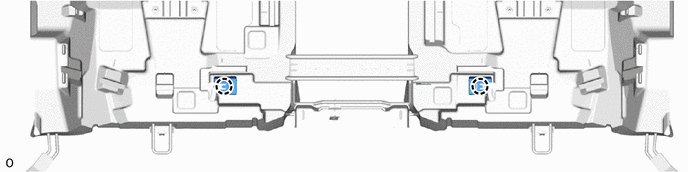

  17. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)
    1. GTY1017220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

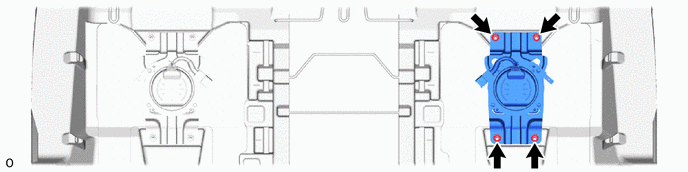

  18. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)
    1. GTY1017206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER LH (w/ Climate Control Seat System)
    1. Use the same procedure described for the RH Side.
  20. REMOVE CONNECTOR HOLDER (w/o Seat Heater System)
    1. GTY1017249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
