Removal [11/2020 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  4. REMOVE SEAT CUSHION HEATER ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not reuse the seat cushion heater assembly RH and rear seat cushion pad sub-assembly.

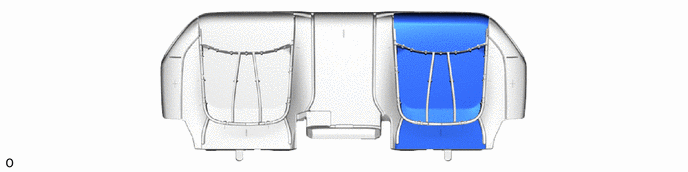

    1. GTY1016625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SEAT CUSHION HEATER ASSEMBLY LH
    1. Use the same procedure described for the RH side.
