Removal [11/2020 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE REAR SEATBACK HOLDER

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 6

  8. REMOVE HEADREST SUPPORT

    Refer to PROCEDURE - Step 12

  9. REMOVE BENCH TYPE REAR SEATBACK COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 13

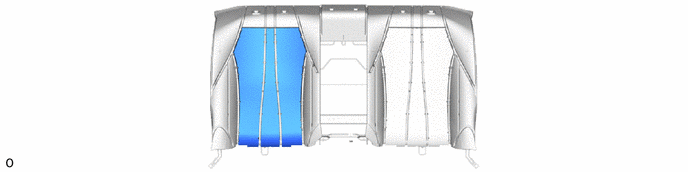

  10. REMOVE SEATBACK HEATER ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not reuse the seatback heater assembly RH and rear seatback pad sub-assembly.
    1. GTY1017243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SEATBACK HEATER ASSEMBLY LH
    1. Use the same procedure described for the RH side.
