Removal [08/2017 - ]: Procedure

  1. REMOVE DCM (TELEPHONE TRANSCEIVER)

    Refer to REMOVAL [08/2017 - ]

  2. REMOVE MOBILE PHONE BATTERY

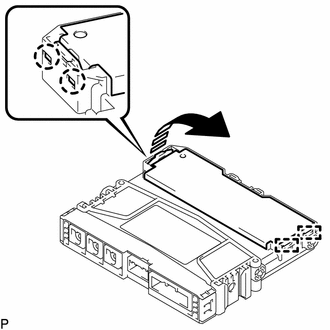

    1. Detach the claws and guides and remove the battery cover as shown in the illustration.
      GTY770979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)

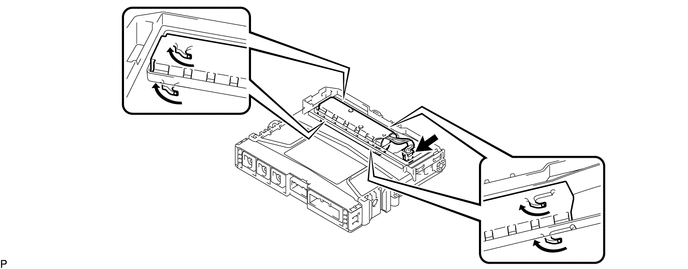

    2. Disconnect the connector and remove the mobile phone battery as shown in the illustration.
      GTY753018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
