Removal [08/2015 - 08/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] ).

  3. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [08/2015 - ]

  4. REMOVE DCM (TELEMATICS TRANSCEIVER)

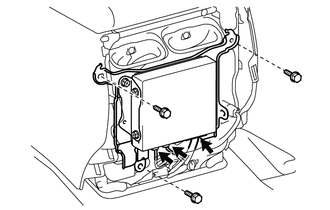

    GTY562896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors.
    2. Remove the 3 bolts and automatics transceiver with bracket.
  5. REMOVE MAYDAY BATTERY
    GTY562894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the nut and No. 3 telephone bracket together with the Mayday battery.
    2. Disconnect the connector and remove the Mayday battery.
      GTY215906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
