Removal [08/2015 - ]: Procedure

1. Disable the autoaway/return function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - ] ).
   WARNING:

   Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

   HINT:

   Performing the above operation causes the autoaway/return function to be disabled when the engine switch is turned off.

2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
3. Turn the engine switch off.

Refer to PROCEDURE - Step 1 [08/2015 - ]

Refer to PROCEDURE - Step 2 [08/2015 - ]

Refer to PROCEDURE - Step 12 [08/2015 - ]

Refer to PROCEDURE - Step 13 [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

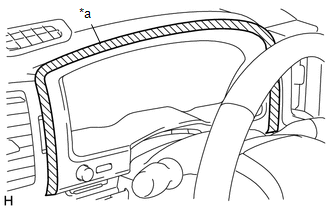

1. Put protective tape around the No. 2 instrument cluster finish panel sub-assembly.
   TEXT IN ILLUSTRATION



   *a	Protective Tape

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Detach the 4 claws.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Detach the 9 claws.

4. Disconnect the connectors and remove the No. 2 instrument cluster finish panel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 screws.
2. Disconnect the connectors and remove the combination meter assembly.
