Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [03/2017 - 06/2017]

  2. REMOVE FLYWHEEL HOUSING UNDER COVER

    Refer to PROCEDURE - Step 43

  3. REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

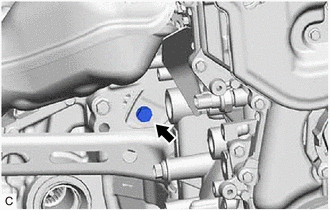

    1. Turn the crankshaft to gain access to the 6 drive plate and torque converter assembly setting bolts and remove each drive plate and torque converter assembly setting bolt while holding the crankshaft pulley bolt with a wrench.
      GTY740962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There will be one black colored drive plate and torque converter assembly setting bolt.

  4. DISCONNECT VACUUM HOSE

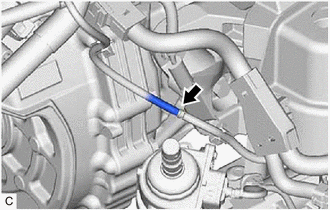

    1. Disconnect the vacuum hose from the rear engine mounting insulator.
      GTY768654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum hose from the vacuum hose connector.
      GTY740963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

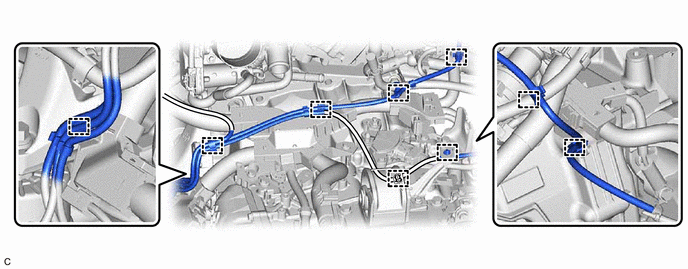

    3. Disengage the 9 clamps to disconnect the vacuum hose from the automatic transaxle assembly.
      GTY740964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)

    Refer to PROCEDURE - Step 11

  6. DISCONNECT WATER BY-PASS HOSE ASSEMBLY

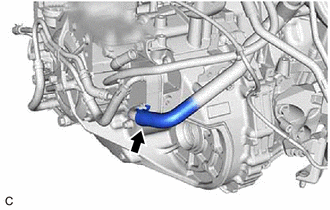

    1. Slide the clip and disconnect the water by-pass hose assembly from the transmission oil cooler.
      GTY754092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to catch any coolant which flows out of the water by-pass hose assembly and transmission oil cooler.

  7. REMOVE BREATHER PLUG HOSE

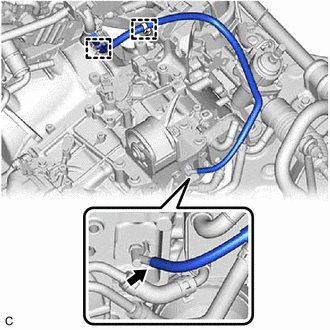

    1. Disengage the 2 hose clamps to disconnect the breather plug hose.
      GTY740965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped with protective tape, remove the breather plug hose from the No. 1 breather plug (ATM).
      NOTE:

      Be careful not to damage the No. 1 breather plug (ATM).

    3. Remove the breather plug sub-assembly from the breather plug hose.
      GTY696664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Breather Plug Sub-assembly
      *2 Breather Plug Hose
      NOTE:

      Be careful not to damage the breather plug sub-assembly.

  8. REMOVE STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 13

  9. DISCONNECT WIRE HARNESS
    1. Disengage the claw, rotate the lever and disconnect the connector of the transmission wire connector.
      GTY740966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

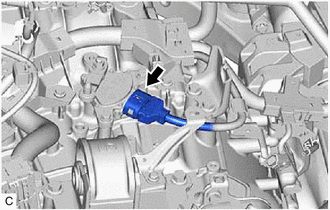

    2. Disconnect the park/neutral position switch assembly connector.
      GTY768655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

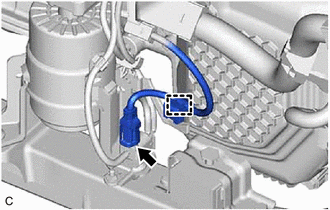

    3. Disengage the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.
      GTY745936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the rack and pinion power steering gear assembly connector.
      GTY741288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Release the lock before rotating the lock lever.

    5. Remove the 2 bolts to disconnect the wire harness from the rack and pinion power steering gear assembly.

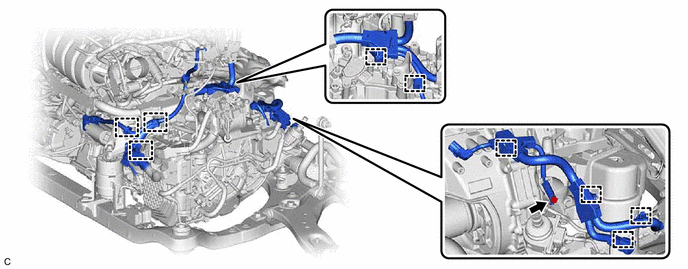

    6. Remove the bolt.
      GTY740968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 9 wire harness clamps to disconnect the wire harness.
    8. Remove the 2 bolts.
      GTY740969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage the wire harness clamp to disconnect the wire harness from the automatic transaxle assembly.
  10. REMOVE FUEL DELIVERY GUARD
    1. Remove the bolt and fuel delivery guard from the engine mounting bracket RH.
      GTY753663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 42

  12. REMOVE FRONT FRAME ASSEMBLY

    Refer to PROCEDURE - Step 51

  13. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. Remove the 3 bolts and front engine mounting bracket from the transaxle housing.
      GTY740970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FLYWHEEL HOUSING SIDE COVER

    Refer to PROCEDURE - Step 4

  15. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter assembly connector.
      GTY958495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Remove the nut and disconnect the No. 2 engine wire from terminal 30.
      GTY957510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts and starter assembly from the cylinder block sub-assembly.
      GTY958479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Support the automatic transaxle assembly with a transmission jack.
      NOTE:

      Secure the automatic transaxle assembly to the transmission jack using a suitable adapter, such as a rope or attachment.

    2. Remove the 8 bolts and automatic transaxle assembly.
      GTY740956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the knock pins, do not pry between the automatic transaxle assembly and engine assembly.

  17. REMOVE REAR NO. 2 ENGINE MOUNTING INSULATOR

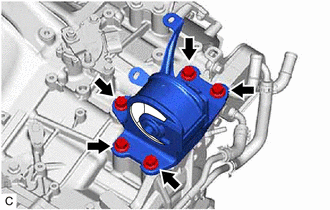

    1. Remove the 5 bolts and rear No. 2 engine mounting insulator from the automatic transaxle case sub-assembly.
      GTY740957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 2

  19. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

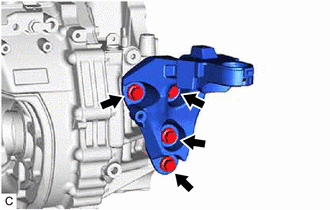

    1. Remove the 4 bolts and rear engine mounting bracket sub-assembly from the transaxle housing.
      GTY740958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. DISCONNECT OUTLET NO. 1 OIL COOLER HOSE

    Refer to PROCEDURE - Step 12

  21. DISCONNECT INLET NO. 1 OIL COOLER HOSE

    Refer to PROCEDURE - Step 13

  22. REMOVE NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE

    Refer to PROCEDURE - Step 14

  23. REMOVE TRANSMISSION OIL COOLER

    Refer to PROCEDURE - Step 17

  24. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and No. 1 transmission control cable bracket from the automatic transaxle case sub-assembly.
      GTY768653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE TRANSMISSION CASE PLUG ASSEMBLY
    1. Remove the transmission case plug assembly from the transaxle housing.
      GTY746030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the transmission case plug assembly.
  26. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the automatic transaxle case sub-assembly.
      GTY740959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the automatic transaxle case sub-assembly.
      GTY740960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and 4 wire harness clamp brackets from the automatic transaxle case sub-assembly and transmission case side cover.
      GTY740894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE TORQUE CONVERTER ASSEMBLY
    1. Remove the torque converter assembly from the automatic transaxle assembly.
  28. INSPECT TORQUE CONVERTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  29. INSPECT DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2
