Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [03/2017 - 06/2017]

  2. REMOVE REAR ENGINE MOUNTING INSULATOR

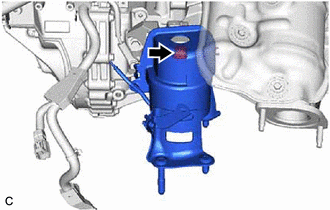

    1. Remove the bolt and rear engine mounting insulator from the rear engine mounting bracket.
      GTY754354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the rear engine mounting insulator.
      GTY754359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

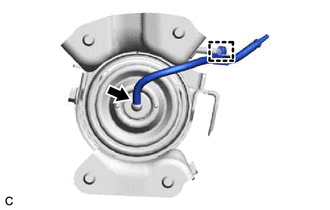

    3. Disengage the clamp and remove the vacuum hose from the rear engine mounting insulator.
      GTY754356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
