Removal [10/2020 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)

    Refer to REMOVAL [10/2020 - ]

  2. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)

    Refer to REMOVAL [10/2020 - ]

  3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Manual Seat)

    Refer to PROCEDURE - Step 5

  4. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Power Seat)

    Refer to PROCEDURE - Step 5

  5. REMOVE VERTICAL ADJUSTING HANDLE (for Manual Seat)

    Refer to PROCEDURE - Step 6

  6. REMOVE RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat)

    Refer to PROCEDURE - Step 7

  7. REMOVE FRONT SEAT FRONT CUSHION SHIELD (for Power Seat)

    Refer to PROCEDURE - Step 6

  8. REMOVE FRONT SEAT CUSHION SHIELD (for Manual Seat)

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT SEAT CUSHION SHIELD (for Power Seat)

    Refer to PROCEDURE - Step 7

  10. REMOVE FRONT SEAT INNER CUSHION SHIELD (for Manual Seat)

    Refer to PROCEDURE - Step 9

  11. REMOVE FRONT SEAT INNER CUSHION SHIELD (for Power Seat)

    Refer to PROCEDURE - Step 8

  12. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY (for Manual Seat)

    Refer to PROCEDURE - Step 11

  13. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY (for Power Seat)

    Refer to PROCEDURE - Step 13

  14. REMOVE FRONT SEAT HEADREST SUPPORT (for Manual Seat)

    Refer to PROCEDURE - Step 12

  15. REMOVE FRONT SEAT HEADREST SUPPORT (for Power Seat)

    Refer to PROCEDURE - Step 14

  16. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (for Manual Seat)

    Refer to PROCEDURE - Step 13

  17. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (for Power Seat)

    Refer to PROCEDURE - Step 15

  18. REMOVE FRONT SEAT AIRBAG ASSEMBLY
    WARNING:

    When storing the front seat airbag assembly, keep the airbag deployment side facing upward.

    GTY550658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side
    1. Disengage the clamp.

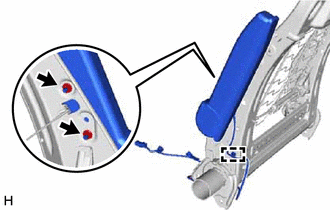

      GTY761646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and front seat airbag assembly.
      NOTE:
      • Do not reuse the nuts.
      • Make sure that the front seatback frame sub-assembly is not deformed. If it is deformed, replace it with a new one.
