Disassembly [09/2019 - ]: Procedure

  1. REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Side)

    Refer to PROCEDURE - Step 2 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - ]

  2. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 2 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - ]

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 3 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - ]

  4. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 4 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - ]

  5. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. Disconnect the 2 rubber bands of the separate type front seatback cover.
      GTY751367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE VERTICAL ADJUSTING HANDLE

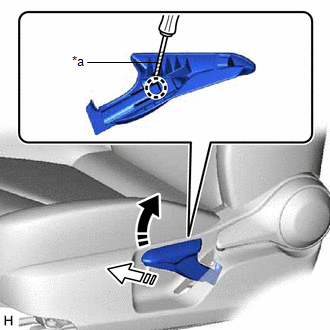

    1. Operate the vertical adjusting handle and using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the vertical adjusting handle as shown in the illustration.
      GTY756441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
  7. REMOVE RECLINING ADJUSTER RELEASE HANDLE

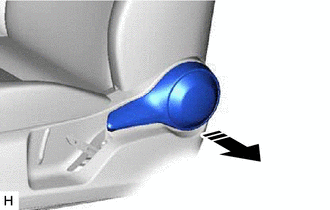

    1. Remove the reclining adjuster release handle as shown in the illustration.
      GTY758255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FRONT SEAT CUSHION SHIELD
    1. Remove the screw.
      GTY770902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

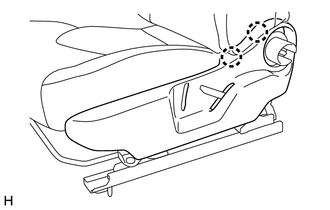

    2. Disengage the 2 claws.
      GTY751370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

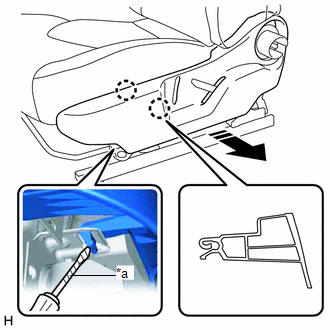

    3. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
      GTY763655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

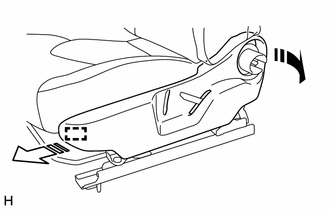

    4. Disengage the guide to remove the front seat cushion shield as shown in the illustration.
      GTY766084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  9. REMOVE FRONT SEAT INNER CUSHION SHIELD
    1. Remove the 2 screws.
      GTY751368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

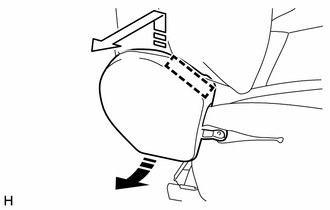

    2. Disengage the guide to remove the front seat inner cushion shield as shown in the illustration.
      GTY773046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  10. REMOVE FRONT SEAT LOWER CUSHION SHIELD

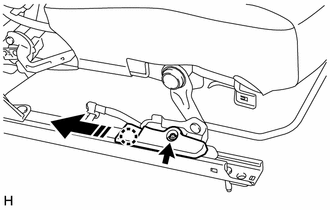

    1. Remove the screw.
      GTY745412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claw to remove the front seat lower cushion shield as shown in the illustration.
  11. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Disengage the hook.
      GTY756378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 3 clamps to separate the front seat airbag assembly wire harness.
      GTY772024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the 3 clamps first.

    3. w/ Seat Heater System:
      1. Disengage the clamp.
        GTY756379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector to separate the front seatback heater assembly RH wire harness.
    4. Remove the 4 bolts to remove the separate type front seatback assembly from the separate type front seat cushion assembly.
      GTY756380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Open the 2 fasteners.
      GTY756381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the hook.
      GTY755821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pass each wire harness through the hole of the separate type front seatback cover.
    4. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the 2 front seat headrest supports.
      GTY745745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  13. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Remove the separate type front seatback cover with pad.
  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Remove the 10 hog rings to remove the separate type front seatback cover from the separate type front seatback pad.
      GTY926995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT SEATBACK HEATER ASSEMBLY RH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 11 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - ]

  16. REMOVE FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - ]

  17. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY
    1. Disengage the 8 hooks to remove the front seatback spring sub-assembly from the front seatback frame sub-assembly.
      GTY756342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT NO. 2 SEATBACK HOOK
    1. Disengage the 2 clamps to remove the 2 front No. 2 seatback hooks from the front seatback frame sub-assembly.
      GTY841876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. w/ Seat Heater System:
      1. Disengage the wire harness clamp. (w/ Wire Harness Clamp)
        GTY1176851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Wire Harness Clamp - -
      2. Disengage the 4 clamps.
      3. Disconnect the connector to separate the front seat cushion heater assembly RH wire harness.
    2. Disengage each hook and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.
      GTY841891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Remove the 2 hog rings.
      GTY756334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 13 hog rings, disengage the 2 fasteners and remove the separate type front seat cushion cover from the separate type front seat cushion pad.
      GTY763673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  21. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY RH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 10 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - ]

  22. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER
    1. Disengage the 2 guides to remove the LH seat reclining adjuster inside cover.
      GTY841874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)
    1. Remove the screw.
      GTY767335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Disengage the claw and guide.
    3. Disengage the hook to remove the front seat lower cushion shield LH.
  24. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)
    1. Operate the seat track adjusting handle and move the front seat adjuster assembly to the rearmost position.
    2. Disengage the hook.
      GTY755882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws to remove the front seat lower cushion shield RH.
  25. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Front Passenger Side)
    1. Remove the screw.
      GTY756348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the hook.
      GTY744376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    3. Disengage the claw and guide to remove the front seat lower cushion shield LH.
  26. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Front Passenger Side)

    HINT:

    Use the same procedure as for the front seat lower cushion shield LH (for Driver Side).

  27. REMOVE LH SEAT SEAT TRACK UPPER RAIL COVER (for Driver Side)

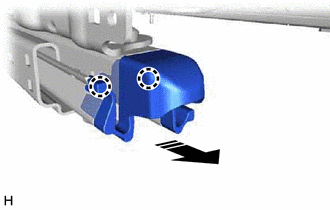

    1. Disengage the 2 claws to remove the LH seat seat track upper rail cover as shown in the illustration.
      GTY762508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  28. REMOVE RH SEAT SEAT TRACK UPPER RAIL COVER (for Front Passenger Side)

    HINT:

    • Use the same procedure as for the LH seat seat track upper rail cover (for Driver Side).
    • Use the same procedure for both RH seat seat track upper rail covers.
  29. REMOVE SEAT TRACK UPPER RAIL COVER LH
    1. Operate the seat track adjusting handle and move the front seat adjuster assembly to the foremost position.

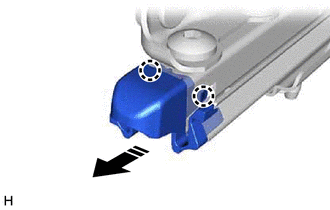

    2. Disengage the 2 claws to remove the seat track upper rail cover LH as shown in the illustration.
      GTY758442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  30. REMOVE SEAT TRACK UPPER RAIL COVER RH

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE FRONT SEAT WIRE RH (w/ Seat Heater System)
    1. Disengage the claw and clamp to remove the front seat wire RH.
      GTY755859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the clamp first.

  32. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY
    1. Disengage the 8 hooks to remove the front seat cushion spring sub-assembly.
      GTY756354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE FRONT SEAT CUSHION PANEL SUB-ASSEMBLY
    1. Remove the 4 screws and front seat cushion panel sub-assembly from the front seat adjuster assembly.
      GTY756356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
