Installation [06/2017 - 09/2019]: Procedure

  1. TEMPORARILY INSTALL AIR CONDITIONER UNIT ASSEMBLY
    1. w/ Claw:
      1. Engage the 2 claws.
    2. Temporarily install the air conditioner unit assembly to the instrument panel reinforcement assembly with the 3 bolts.
  2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY
    NOTE:
    • Be sure to support the air conditioner unit assembly when installing it. Failure to do so may cause the bracket of the air conditioner unit assembly to break.
    • When installing the air conditioner unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

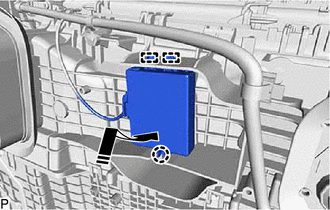

    1. Engage the 2 guides and claw to connect the ID code box (immobiliser code ECU) as shown in the illustration.
      GTY745411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

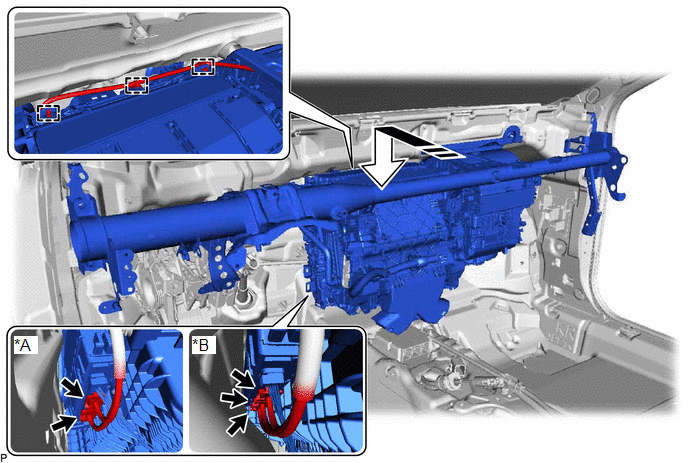

    2. Connect each connector.
      GTY747663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Seat Heater *B w/ Seat Heater
      Install in this Direction - -
    3. Engage each clamp.
    4. Temporarily install the instrument panel reinforcement assembly with air conditioner unit assembly as shown in the illustration.
    5. Install the 4 bolts (A).

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    6. Connect the brake pedal assembly with the bolt (B).

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

    7. Temporarily install the nut.
    8. Install the 3 bolts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    9. Install the 2 hole plugs.

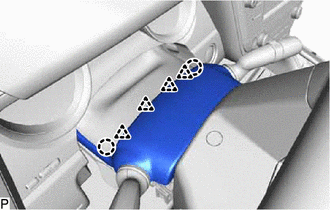

    10. Install a new cooler unit drain hose grommet.
      NOTE:
      • If the drain cooler hose is disconnected from the cooler unit drain hose grommet, make sure to replace the cooler unit drain hose grommet with a new one. Failure to do so may lead to water ingress.
      • Make sure that the entire lip of the cooler unit drain hose grommet is securely engaged to the vehicle body.
      GTY756398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lip
    11. Connect the drain cooler hose.

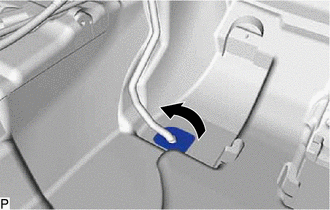

    12. GTY773404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the front floor mat to its original position as shown in the illustration.

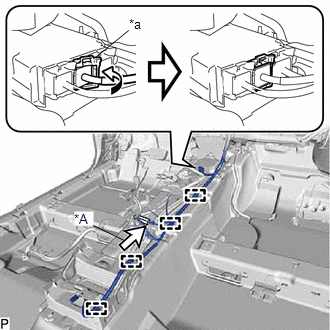

    13. Engage each clamp.
      GTY768782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Smart Key System
      *a Lock Lever
      Move in this Direction
    14. Temporarily connect the connector and then move the lock lever as shown in the illustration to securely connect the connector.
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    15. Check that there is no looseness in the installed parts of the airbag sensor assembly.
    16. w/ Smart Key System:
      1. Connect the connector.
    17. Engage each clamp.
    18. Connect the connector holder with the 2 nuts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    19. Connect the 3 earth wires with the 3 bolts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    20. Connect the connector.
  3. INSTALL INSTRUMENT PANEL TO PEDAL BRACKET (for Pedal Type Parking Brake)
    1. Engage the guide to install the instrument panel to pedal bracket with the bolt and nut.

      Bolt

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      Nut

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  4. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY
    1. Engage the 4 claws to install the No. 2 air duct sub-assembly.
  5. INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Refer to PROCEDURE - Step 3

  6. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
    1. Install the No. 3 instrument panel to cowl brace sub-assembly with the bolt and nut.

      Bolt

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Nut

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Engage each clamp.
  7. INSTALL NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the No. 2 instrument panel brace sub-assembly with the bolt and nut.

      Bolt

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      Nut

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    2. Temporarily install the screw.

      HINT:

      Do not fully tighten the screw.

    3. Engage each clamp.
    4. Connect the relay block assembly with the bolt (B).

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the earth wire with the bolt (A).

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  8. INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the No. 1 instrument panel brace sub-assembly with the bolt and nut.

      Bolt

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      Nut

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    2. Temporarily install the screw.

      HINT:

      Do not fully tighten the screw.

    3. Engage each clamp.
    4. Connect the earth wire with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  9. INSTALL AIR CONDITIONER UNIT ASSEMBLY

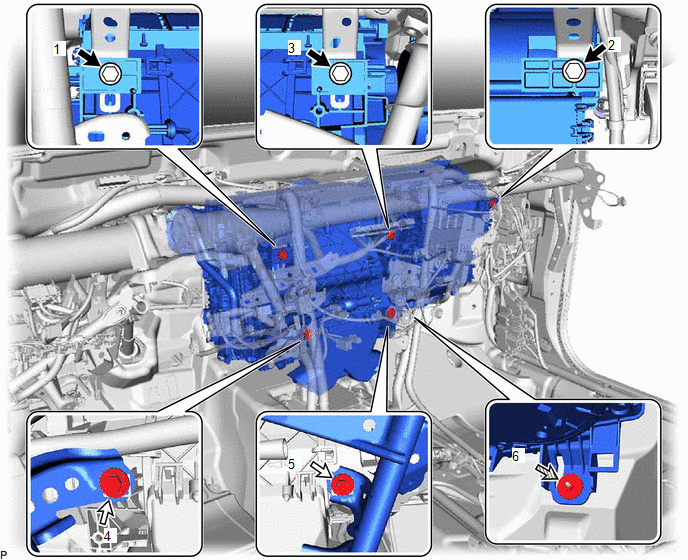

    1. Tighten the 3 bolts, 2 screws and nut to install the air conditioner unit assembly.
      GTY741258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Screw
      Nut - -

      Bolt

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

      Nut

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

      NOTE:

      Tighten the bolts, screws and nut in the order shown in the illustration.

  10. INSTALL NO. 3 DASH PANEL INSULATOR PAD

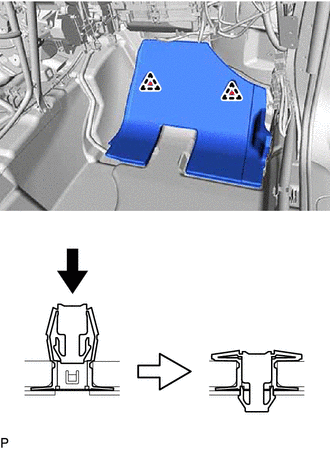

    1. Install the No. 3 dash panel insulator pad with 2 new clips as shown in the illustration.
      GTY771148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

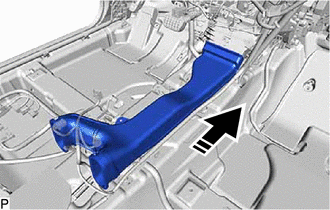

  11. INSTALL NO. 1 CONSOLE BOX DUCT (for Dual Type)
    1. Install the No. 1 console box duct as shown in the illustration.
      GTY753233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

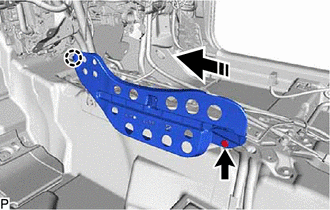

  12. INSTALL FLOOR CARPET BRACKET LH
    1. Engage the claw as shown in the illustration.
      GTY771835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the floor carpet bracket LH with the clip.

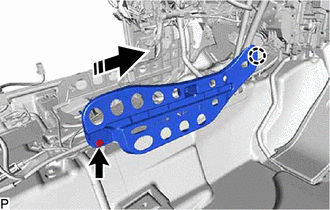

  13. INSTALL FLOOR CARPET BRACKET RH
    1. Engage the claw as shown in the illustration.
      GTY752001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the floor carpet bracket RH with the clip.
  14. INSTALL REAR NO. 3 AIR DUCT
    1. Engage the 2 claws to install the rear No. 3 air duct.

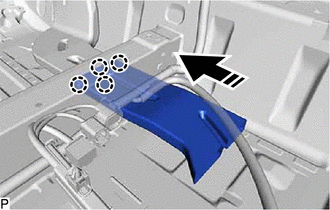

  15. INSTALL REAR NO. 4 AIR DUCT
    1. Engage the 4 claws to install the rear No. 4 air duct as shown in the illustration.
      GTY757511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

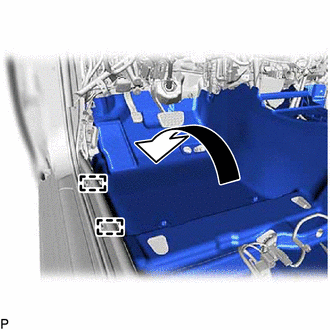

    2. Install the front floor carpet assembly to its original position as shown in the illustration.
      GTY754360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 guides.
    4. Install the 2 front floor carpet clips.
  16. INSTALL REAR NO. 1 AIR DUCT
    1. Engage the 2 claws to install the rear No. 1 air duct.

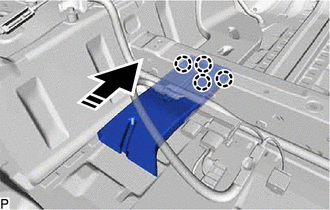

  17. INSTALL REAR NO. 2 AIR DUCT
    1. Engage the 4 claws to install the rear No. 2 air duct as shown in the illustration.
      GTY743342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

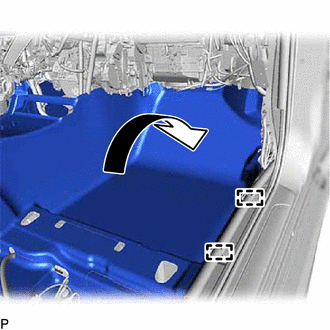

    2. GTY762969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the front floor carpet assembly to its original position as shown in the illustration.

    3. Engage the 2 guides.
    4. Install the 2 front floor carpet clips.
  18. INSTALL FRONT FLOOR CAUTION PLATE COVER (for TMC Made)

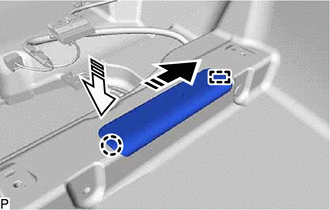

    1. Engage the guide and claw to install the front floor caution plate cover as indicated by the arrows, in the order shown in the illustration.
      GTY744647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  19. INSTALL ACCELERATOR PEDAL

    For A25A-FKS:

    Refer to PROCEDURE - Step 1

    For 2GR-FKS:

    Refer to PROCEDURE - Step 1

  20. INSTALL ACCELERATOR PEDAL PAD

    For A25A-FKS:

    Refer to PROCEDURE - Step 2

    For 2GR-FKS:

    Refer to PROCEDURE - Step 2

  21. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR
    1. Connect the aspirator and connector to install the cooler (room temp. sensor) thermistor.
  22. INSTALL NO. 1 CLEARANCE WARNING BUZZER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 1

  23. INSTALL DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 1

  24. INSTALL CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) (w/o Smart Key System)

    Refer to PROCEDURE - Step 1

  25. INSTALL ECU INTEGRATION BOX RH (w/ Smart Key System)

    Refer to PROCEDURE - Step 3

  26. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [06/2017 - 10/2020]

  27. INSTALL STEERING COLUMN ASSEMBLY

    Refer to INSTALLATION [06/2017 - 10/2020]

  28. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

    For UB80E Automatic Transmission / Transaxle:

    Refer to INSTALLATION [03/2017 - ]

    For UA80E Automatic Transmission / Transaxle:

    Refer to INSTALLATION [06/2017 - ]

  29. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)

    For TMMK Made:

    Refer to INSTALLATION [06/2017 - ]

  30. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)

    For TMC Made:

    Refer to INSTALLATION [03/2017 - 09/2019]

    For TMMK Made:

    HINT:

    Use the same procedure as for the LH side.

  31. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)

    For TMC Made:

    Refer to INSTALLATION [03/2017 - 09/2019]

    For TMMK Made:

    Refer to INSTALLATION [06/2017 - 09/2019]

  32. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)

    For TMMK Made:

    HINT:

    Use the same procedure as for the LH side.

  33. CONNECT AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY (w/o Sub-cool Accelerator)
    1. Remove the vinyl tape from the air conditioning tube and accessory assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the air conditioning tube and accessory assembly.
      Refrigerant Compressor Oil
      HFC-134a (R134a) ND-OIL 8 or equivalent
      HFO-1234yf (R1234yf) ND-OIL 12 or equivalent
    3. Install the O-ring to the air conditioning tube and accessory assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the air conditioning tube and accessory assembly.
  34. CONNECT SUCTION PIPE SUB-ASSEMBLY (w/o Sub-cool Accelerator)
    1. Remove the vinyl tape from the suction pipe sub-assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the suction pipe sub-assembly.
      Refrigerant Compressor Oil
      HFC-134a (R134a) ND-OIL 8 or equivalent
      HFO-1234yf (R1234yf) ND-OIL 12 or equivalent
    3. Install the O-ring to the suction pipe sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction pipe sub-assembly.

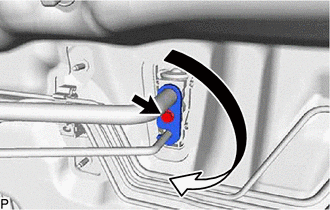

    5. Rotate the hook connector as shown in the illustration.
      GTY767138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Insert the tube joint into the fitting hole securely and install the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  35. CONNECT NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY (w/ Sub-cool Accelerator)
    1. Remove the vinyl tape from the No. 2 air conditioning tube and accessory assembly.
    2. Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the No. 2 air conditioning tube and accessory assembly.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the 2 O-rings to the No. 2 air conditioning tube and accessory assembly.
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the No. 2 air conditioning tube and accessory assembly.

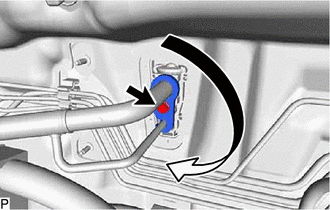

    5. Rotate the hook connector as shown in the illustration.
      GTY752628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Insert the tube joint into the fitting hole securely and install the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

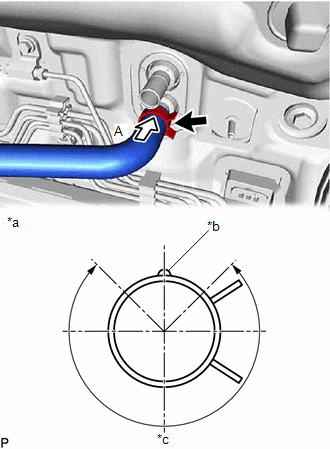

  36. CONNECT INLET HEATER WATER HOSE (for A25A-FKS)
    1. Connect the inlet heater water hose with the marking facing up and engage the clip within the area shown in the illustration.
      NOTE:

      Do not apply excessive force to the inlet heater water hose.

      GTY746761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (White)
      *c Clip Installation Angle (270°)

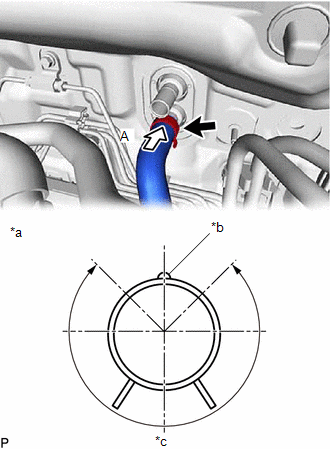

  37. CONNECT INLET HEATER WATER HOSE (for 2GR-FKS)
    1. Connect the inlet heater water hose with the marking facing up and engage the clip within the area shown in the illustration.
      NOTE:

      Do not apply excessive force to the inlet heater water hose.

      GTY754618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Yellow)
      *c Clip Installation Angle (270°)

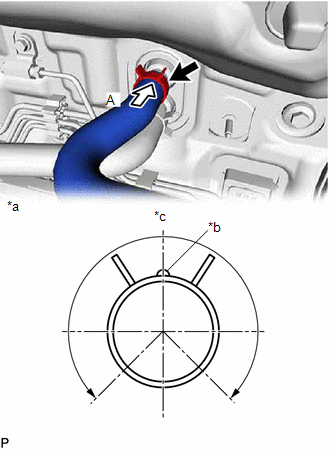

  38. CONNECT OUTLET HEATER WATER HOSE (for A25A-FKS)
    1. Connect the outlet heater water hose with the marking facing up and engage the clip within the area shown in the illustration.
      GTY744331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b For TMC made:
      Marking (Red)
      For TMMK made:
      Marking (Green)
      *c Clip Installation Angle (270°)
      NOTE:

      Do not apply excessive force to the outlet heater water hose.

  39. CONNECT OUTLET HEATER WATER HOSE A (for 2GR-FKS)

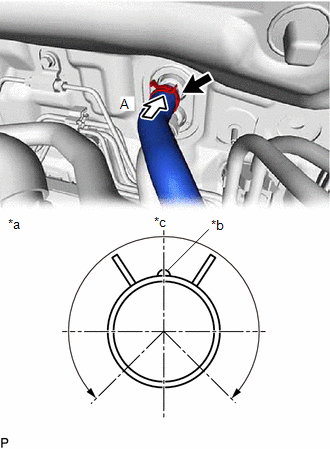

    1. Connect the outlet heater water hose A with the marking facing up and engage the clip within the area shown in the illustration.
      GTY754156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Purple)
      *c Clip Installation Angle (270°)
      NOTE:

      Do not apply excessive force to the outlet heater water hose A.

  40. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  41. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [03/2017 - ]

  42. ADD ENGINE COOLANT

    For A25A-FKS:

    Refer to PROCEDURE - Step 2

    For 2GR-FKS:

    Refer to PROCEDURE - Step 2

  43. INSPECT FOR COOLANT LEAK

    For A25A-FKS:

    Refer to PROCEDURE - Step 1 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 1 [08/2018 - ]

    For 2GR-FKS:

    Refer to PROCEDURE - Step 1

  44. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    For HFC-134a (R134a):

    See step  2

    For HFO-1234yf (R1234yf):

    See step  2

  45. WARM UP ENGINE

    For HFC-134a (R134a):

    See step  3

    For HFO-1234yf (R1234yf):

    See step  3

  46. INSPECT FOR REFRIGERANT LEAK

    For HFC-134a (R134a):

    See step  4

    For HFO-1234yf (R1234yf):

    See step  4

scientia non olet · About LEMON Manuals
