Installation [06/2017 - 09/2019]: Procedure
- INSTALL BRAKE ACTUATOR BOLT CUSHION
- Install the brake actuator bolt cushion to the brake actuator bracket assembly.
- INSTALL NO. 2 BRAKE ACTUATOR CASE COLLAR
- Install the No. 2 brake actuator case collar to the brake actuator bolt cushion.NOTE:
Make sure that the No. 2 brake actuator case collar is in full contact with the brake actuator bolt cushion.
- Install the No. 2 brake actuator case collar to the brake actuator bolt cushion.
- INSTALL BRAKE ACTUATOR ASSEMBLY
- Install the brake actuator assembly to the brake actuator bracket assembly.
- Tighten the 2 nuts and install the bolt.
Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)
NOTE:- Do not remove the hole plugs of a new brake actuator assembly before connecting the brake tubes because the brake actuator assembly is filled with brake fluid.
- Do not hold the brake actuator assembly by the connector.
- Do not drop the brake actuator assembly when carrying it.

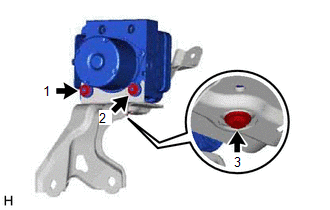

- Tighten the bolt and 2 nuts in the order shown in the illustration.
- INSTALL BRAKE ACTUATOR WITH BRACKET
- w/ cushion:
- Temporarily install the brake actuator with bracket to the vehicle body.NOTE:
- Do not kink or damage the brake lines.
- Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
- Be careful not to allow any brake fluid to enter the connector.
- Do not hold the brake actuator assembly by the connector.
- Do not drop the brake actuator with bracket when carrying it.
HINT:
- Install the brake actuator with bracket while avoiding the brake lines.

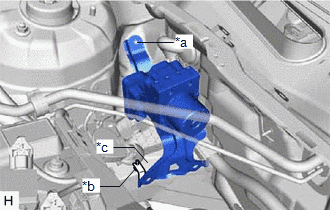

- After temporarily installing the brake actuator with bracket to the vehicle body, confirm that the cushion is contacting the upper side of the side member.

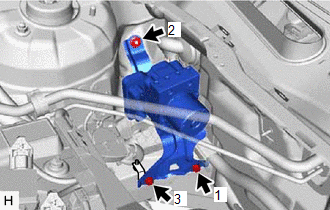

*a Stud Bolt *b Cushion *c Side Member - Install the 2 bolts and nut in the order shown in the illustration.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
HINT:
Install the 2 bolts from the bottom of the vehicle.
- Temporarily install the brake actuator with bracket to the vehicle body.
- w/o cushion:
- Temporarily install the brake actuator with bracket to the vehicle body with the 2 bolts and nut.NOTE:
- Do not kink or damage the brake lines.
- Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
- Be careful not to allow any brake fluid to enter the connector.
- Do not hold the brake actuator assembly by the connector.
- Do not drop the brake actuator with bracket when carrying it.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
- Install the brake actuator with bracket while avoiding the brake lines.
- Install the 2 bolts from the bottom of the vehicle.

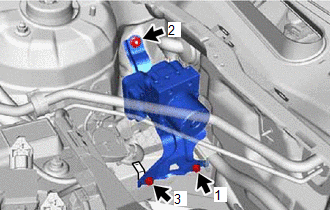

- Fully tighten the 2 bolts and nut in the order shown in the illustration.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
- Temporarily install the brake actuator with bracket to the vehicle body with the 2 bolts and nut.
- Remove the protective tape.

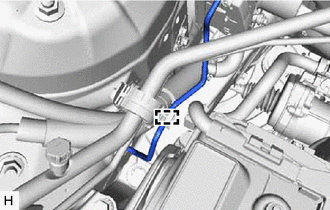

- Engage the clamp to install a new brake tube clamp.
- Return the front No. 3 brake tube to its original position.NOTE:
Do not apply excessive force to the front No. 3 brake tube.
- Temporarily install the front No. 3 brake tube to the front flexible hose.NOTE:
- Do not kink or damage the front No. 3 brake tube.
- Do not allow any foreign matter such as dirt or dust to enter the front No. 3 brake tube from the connecting parts.
- Engage the clamp to connect the front No. 3 brake tube.NOTE:
Do not kink or damage the front No. 3 brake tube.

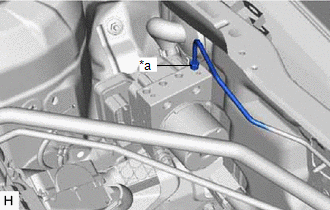

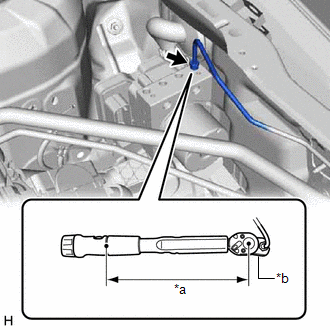

- Temporarily tighten the brake line to the correct position on the brake actuator assembly as shown in the illustration.
*a To Front Wheel Cylinder Assembly LH NOTE:- Do not kink or damage the brake line.
- Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
- Using a union nut wrench, fully tighten the brake line.
Specified tightening torque
Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)
*a Torque Wrench Fulcrum Length *b Union Nut Wrench NOTE:Do not kink or damage the brake line.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [06/2017 - 09/2019]
- When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
13.4 N*m (137 kgf*cm, 10 ft.*lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

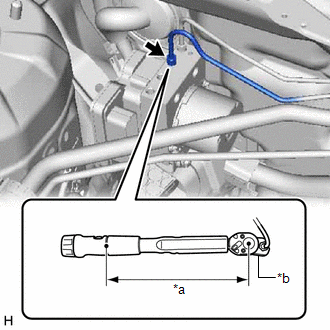

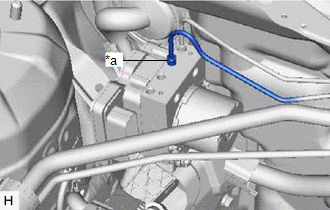

*a To Rear Wheel Cylinder Assembly RH Temporarily tighten the brake line to the correct position on the brake actuator assembly as shown in the illustration.
NOTE:- Do not kink or damage the brake line.
- Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
- Using a union nut wrench, fully tighten the brake line.
Specified tightening torque
Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)
*a Torque Wrench Fulcrum Length *b Union Nut Wrench NOTE:Do not kink or damage the brake line.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [06/2017 - 09/2019]
- When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
13.4 N*m (137 kgf*cm, 10 ft.*lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

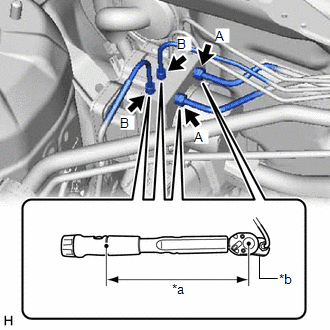

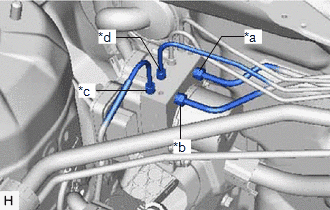

- Temporarily tighten the 4 brake lines to the correct positions on the brake actuator assembly as shown in the illustration.
*a From 1st Chamber of Brake Master Cylinder Sub-assembly *b From 2nd Chamber of Brake Master Cylinder Sub-assembly *c To Front Wheel Cylinder Assembly RH *d To Rear Wheel Cylinder Assembly LH NOTE:- Do not kink or damage the brake lines.
- Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
- Using a union nut wrench, fully tighten each brake line.
Specified tightening torque (A)
Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)
Specified tightening torque (B)
Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)
*a Torque Wrench Fulcrum Length *b Union Nut Wrench NOTE:Do not kink or damage the brake lines.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [06/2017 - 09/2019]
- When using a union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): (A): 17.4 N*m (177 kgf*cm, 13 ft.*lbf)
- When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): (B): 13.4 N*m (137 kgf*cm, 10 ft.*lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

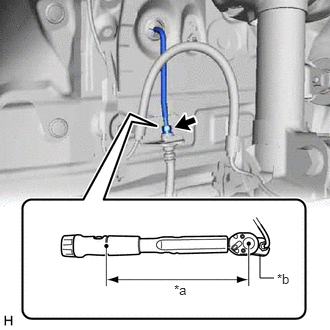

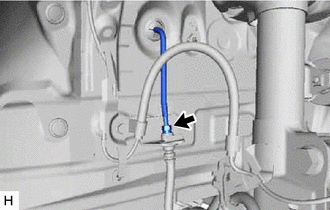

- Using a union nut wrench, fully tighten the front No. 3 brake tube while holding the front flexible hose with a wrench.
Specified tightening torque
Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)
*a Torque Wrench Fulcrum Length *b Union Nut Wrench NOTE:Do not kink or damage the front No. 3 brake tube.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [06/2017 - 09/2019]
- When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
13.4 N*m (137 kgf*cm, 10 ft.*lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

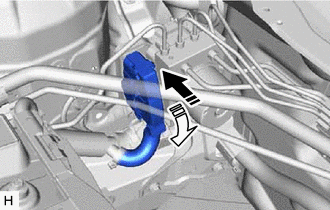

- Connect the connector to the brake actuator assembly and lock the lock lever.
Connect the connector Lock the lock lever NOTE:- Make sure that the connector is locked securely.
- Make sure that the actuator connector can be connected smoothly.
- Do not allow water, oil or dirt to enter the connector.
- w/ cushion:

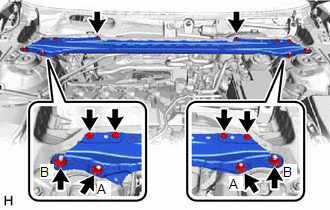

- INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY
- Temporarily install the front center upper suspension brace sub-assembly with the 6 bolts and 4 nuts.
- Fully tighten the 2 nuts (A).
Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
- Fully tighten the 6 bolts and 2 nuts (B) to install the front center upper suspension brace sub-assembly.
Bolt
Bolt Color Torque Black 8.0 N*m (82 kgf*cm, 71 in.*lbf) Silver 8.9 N*m (91 kgf*cm, 79 in.*lbf) Nut (B)
Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)
- Engage the 2 clamps to install the wire harness.
- Connect the connector.
- Temporarily install the front center upper suspension brace sub-assembly with the 6 bolts and 4 nuts.
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL FRONT WHEEL RH
Refer to PROCEDURE - Step 1
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
For A25A-FKS: Refer to PROCEDURE - Step 2 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - ]
For 2GR-FKS: Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019]
- BLEED BRAKE SYSTEM
Refer to BLEEDING [03/2017 - ]
- PERFORM SYSTEM VARIANT LEARNING AND ACCELERATION SENSOR ZERO POINT CALIBRATION
w/o Electric Parking Brake System: Refer to CALIBRATION [06/2017 - 10/2020]
w/ Electric Parking Brake System: Refer to CALIBRATION [06/2017 - 10/2020]
- PERFORM TEST MODE INSPECTION
w/o Electric Parking Brake System: Refer to TEST MODE PROCEDURE [06/2017 - 10/2020]
w/ Electric Parking Brake System: Refer to TEST MODE PROCEDURE [06/2017 - 03/2020]
- INSPECT BRAKE ACTUATOR USING TECHSTREAM
- CHECK FOR AND CLEAR DTCS
w/o Electric Parking Brake System: Refer to DTC CHECK / CLEAR [06/2017 - 10/2020]
w/ Electric Parking Brake System: Refer to DTC CHECK / CLEAR [06/2017 - 10/2020]
