Reassembly [09/2019 - ]: Procedure

  1. INSTALL FRONT SEAT CUSHION PANEL SUB-ASSEMBLY

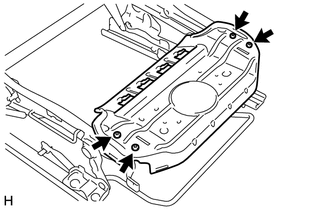

    1. Install the front seat cushion panel sub-assembly to the front seat adjuster assembly with the 4 screws.
      GTY756356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

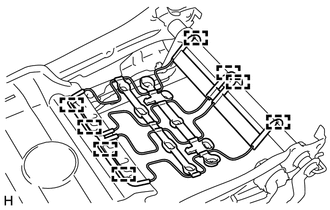

    1. Engage the 8 hooks to install the front seat cushion spring sub-assembly.
      GTY756354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SEAT WIRE RH (w/ Seat Heater System)
    1. Engage the claw and clamp to install the front seat wire RH.

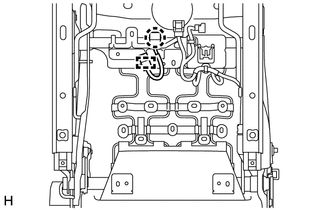

      GTY755859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Engage the claw first.

  4. INSTALL SEAT TRACK UPPER RAIL COVER LH
    1. Operate the seat track adjusting handle and move the front seat adjuster assembly to the foremost position.
    2. Engage the 2 claws to install the seat track upper rail cover LH as shown in the illustration.

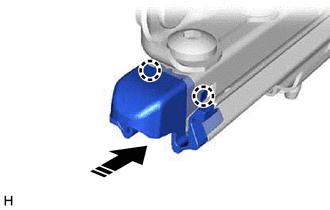

      GTY764410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL SEAT TRACK UPPER RAIL COVER RH

    HINT:

    Use the same procedure as for the LH side.

  6. INSTALL LH SEAT SEAT TRACK UPPER RAIL COVER (for Driver Side)
    1. Operate the seat track adjusting handle and move the front seat adjuster assembly to the rearmost position.
    2. Engage the 2 claws to install the LH seat seat track upper rail cover as shown in the illustration.

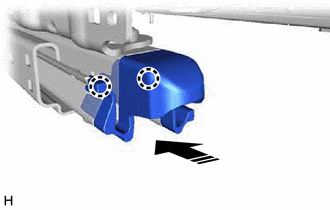

      GTY768206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL RH SEAT SEAT TRACK UPPER RAIL COVER (for Front Passenger Seat)

    HINT:

    • Use the same procedure as for the LH seat seat track upper rail cover (for Driver Side).
    • Use the same procedure for both RH seat seat track upper rail covers.
  8. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)
    1. Engage the hook.

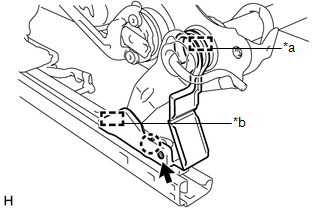

      GTY767335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Engage the claw and guide.
    3. Install the front seat lower cushion shield LH with the screw.
  9. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)
    1. Engage the 2 claws.
      GTY755882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook to install the front seat lower cushion shield RH.
  10. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Front Passenger Side)
    1. Engage the claw and guide.

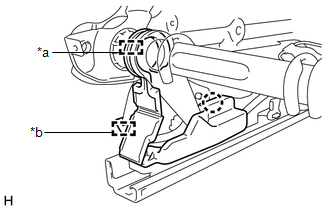

      GTY744376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Engage the hook.
    3. Install the front seat lower cushion shield LH with the screw.

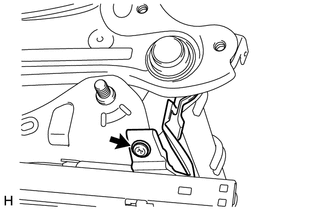

      GTY756348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Front Passenger Side)

    HINT:

    Use the same procedure as for the front seat lower cushion shield LH (for Driver Side).

  12. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER
    1. Engage the 2 guides to install the LH seat reclining adjuster inside cover.

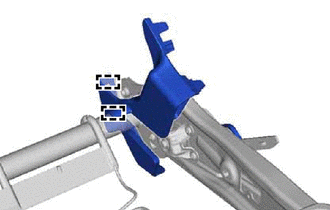

      GTY841874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY RH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  14. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

    HINT:

    When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [09/2019 - ]

    1. Using hog ring pliers, install 13 new hog rings in the order indicated in the illustration.
      GTY770100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
      NOTE:
      • Be careful not to damage the separate type front seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
    2. Engage the 2 fasteners.
    3. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 2 new hog rings in the order indicated in the illustration.
      GTY872274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type front seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
  15. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

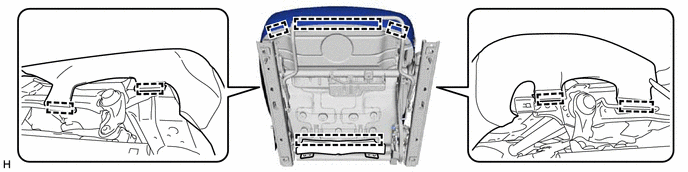

    1. Engage each hook to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.
      GTY841891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
      1. Connect the connector.

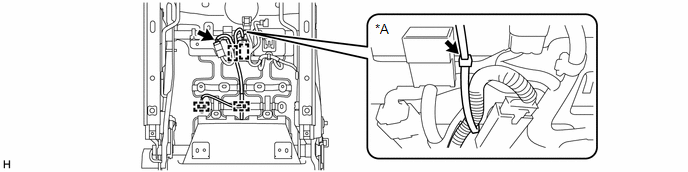

        GTY1176851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Wire Harness Clamp - -
      2. Engage the 4 clamps to install the front seat cushion heater assembly RH wire harness.
      3. Engage a new wire harness clamp. (w/ Wire Harness Clamp)
  16. INSTALL FRONT NO. 2 SEATBACK HOOK
    1. Engage the 2 clamps to install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.
      GTY841876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY
    1. Engage the 8 hooks to install the front seatback spring sub-assembly to the front seatback frame sub-assembly.

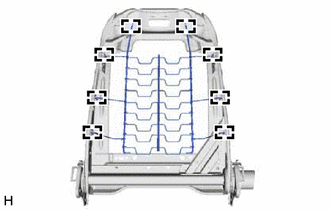

      GTY756342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  19. INSTALL FRONT SEATBACK HEATER ASSEMBLY RH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  20. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

    HINT:

    When installing a separate type front seatback cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [09/2019 - ]

    1. Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 10 new hog rings in the order indicated in the illustration.
      GTY909808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
  21. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Install the separate type front seatback cover with pad.
  22. INSTALL FRONT SEAT HEADREST SUPPORT
    1. Engage the 2 claws to install the 2 front seat headrest supports.
      GTY756337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pass each wire harness through the hole of the separate type front seatback cover.

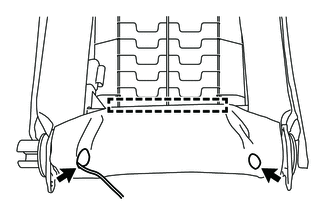

      GTY755821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the hook.
    4. Close the 2 fasteners.
      GTY756351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

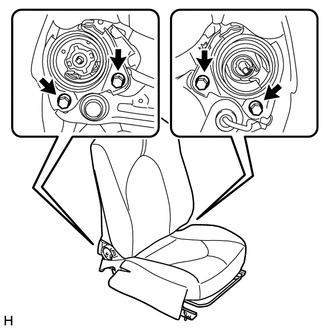

    1. Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.
      GTY756380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

    2. w/ Seat Heater System:
      1. Connect the connector.

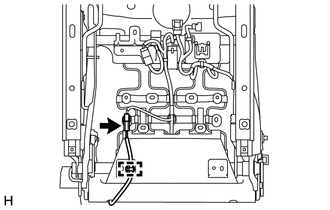

        GTY756379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the clamp to install the front seatback heater assembly RH wire harness.

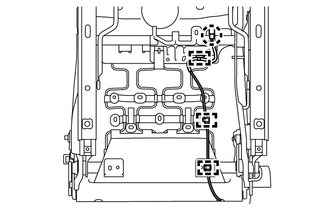

    3. Engage the claw and 3 clamps to install the front seat airbag assembly wire harness.
      GTY772024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Engage the claw first.

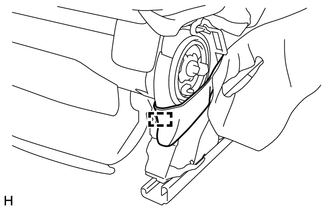

    4. Engage the hook.
      GTY756378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL FRONT SEAT LOWER CUSHION SHIELD
    1. Engage the claw as shown in the illustration.

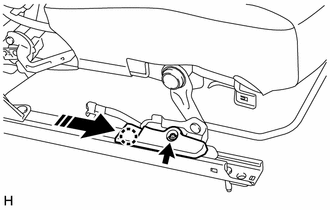

      GTY745759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front seat lower cushion shield with the screw.
  25. INSTALL FRONT SEAT INNER CUSHION SHIELD
    1. Engage the guide as shown in the illustration.

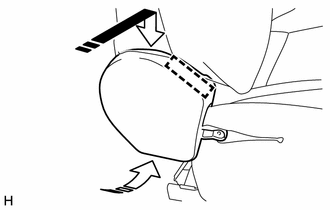

      GTY759567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Install the front seat inner cushion shield with the 2 screws.
      GTY751368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT SEAT CUSHION SHIELD

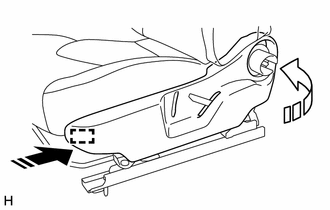

    1. Engage the guide as shown in the illustration.
      GTY772299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

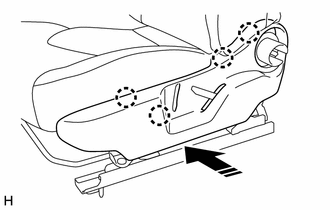

    2. Engage the 4 claws as shown in the illustration.
      GTY765131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

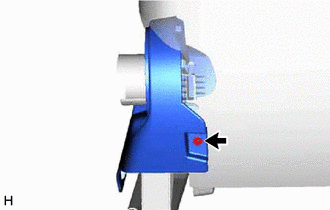

    3. Install the front seat cushion shield with the screw.
      GTY770902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL RECLINING ADJUSTER RELEASE HANDLE
    1. Install the reclining adjuster release handle as shown in the illustration.

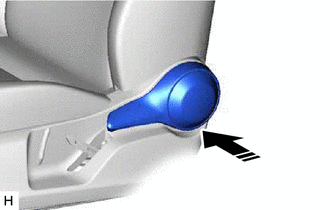

      GTY742741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  28. INSTALL VERTICAL ADJUSTING HANDLE

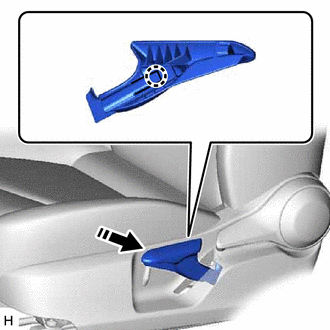

    1. Engage the claw to install the vertical adjusting handle as shown in the illustration.
      GTY741485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  29. CONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. Connect the 2 rubber bands of the separate type front seatback cover.

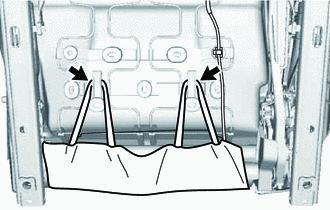

      GTY751367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 1

  31. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 2

  32. INSTALL OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 1

  33. INSTALL SEAT POSITION AIRBAG SENSOR (for Driver Side)

    Refer to PROCEDURE - Step 1
