Removal [06/2017 - 10/2020]: Procedure

for Manual Seat: Refer to REMOVAL [06/2017 - 10/2020]

for Power Seat: Refer to REMOVAL [06/2017 - 10/2020]

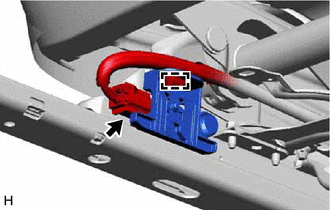

1. Disengage the clamp and disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

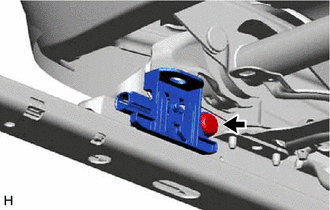

2. Using a T30 "TORX" socket wrench, remove the "TORX" bolt and seat position airbag sensor with the seat slide position sensor protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

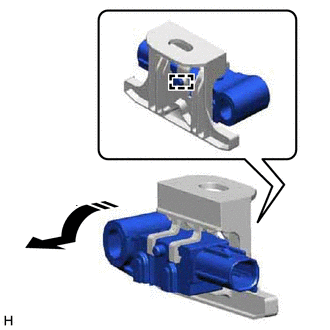

3. Disengage the pin to remove the seat position airbag sensor from the seat slide position sensor protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction
