Removal [03/2017 - 06/2017]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [03/2017 - 06/2017]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 4
- REMOVE REAR ARMREST ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 7
- REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER
Refer to PROCEDURE - Step 8
- REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 12
- REMOVE REAR DOOR NO. 1 VENT SEAL
Refer to PROCEDURE - Step 13
- REMOVE REAR DOOR PANEL PROTECTOR
Refer to PROCEDURE - Step 14
- REMOVE REAR DOOR GLASS RUN
Refer to PROCEDURE - Step 15
- DISCONNECT REAR DOOR WEATHERSTRIP
Refer to PROCEDURE - Step 13
- REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
- REMOVE REAR DOOR QUARTER WINDOW GLASS
Refer to PROCEDURE - Step 19
- REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 20

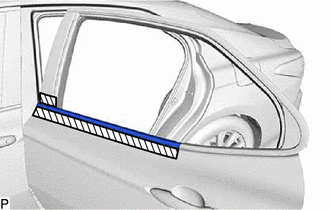

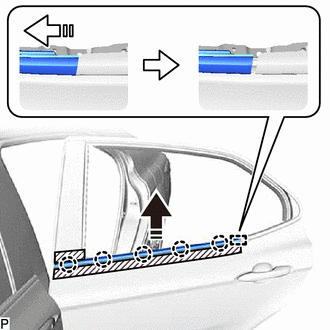

- REMOVE REAR DOOR BELT MOULDING ASSEMBLY
