Disassembly [03/2017 - 06/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 06/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY

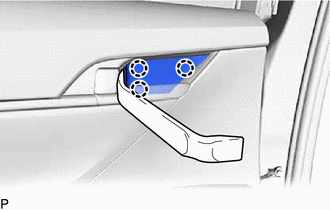

    1. Using a moulding remover, disengage the 3 claws to remove the rear door armrest cover sub-assembly.
      GTY759475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
    1. Disengage the 2 clips, 5 claws and 6 guides as shown in the illustration.

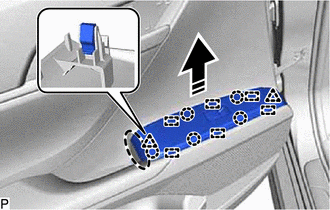

      GTY764408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disconnect the connector to remove the rear power window regulator switch assembly with rear door upper armrest base panel.
  5. REMOVE REAR ARMREST ASSEMBLY
    1. Disengage the 3 clips, 8 claws and 2 guides as shown in the illustration.

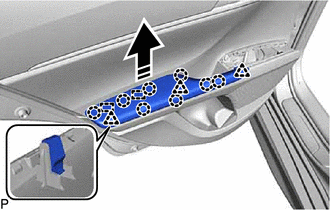

      GTY768463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

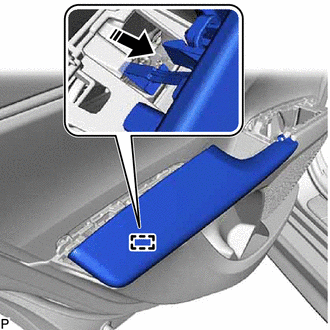

    2. Disengage the guide to remove the rear armrest assembly as shown in the illustration.
      GTY743403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

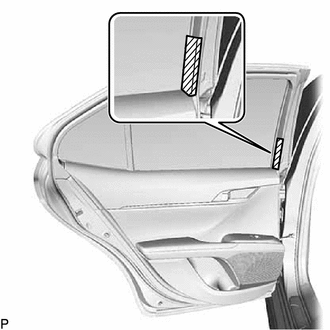

    1. Apply protective tape to the rear door panel as shown in the illustration.
      GTY740833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 3 screws.
      GTY772704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 clips as shown in the illustration.

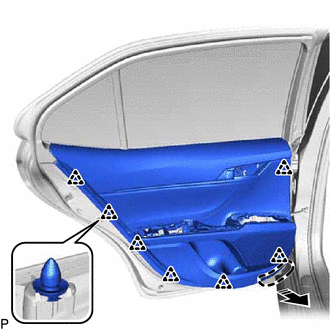

      GTY744392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

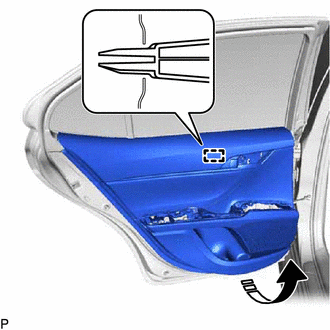

    4. Pull out the rear door trim board sub-assembly as shown in the illustration to disengage the guide.
      GTY1006950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Raise the rear door trim board sub-assembly to separate the rear door trim board sub-assembly with the rear door inner glass weatherstrip and No. 1 door scuff plate clamp.
    6. Disconnect the rear door lock remote control cable assembly and rear door inside locking cable assembly to remove the rear door trim board sub-assembly as shown in the illustration.

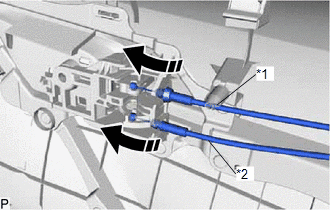

      GTY757135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      *2 Rear Door Lock Remote Control Cable Assembly
      Remove in this Direction

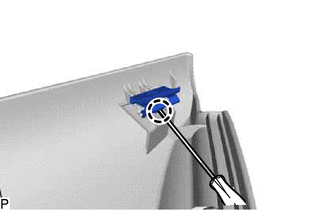

    7. Using a screwdriver, disengage the claw to remove the No. 1 door scuff plate clamp from the rear door trim board sub-assembly.
      GTY759449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

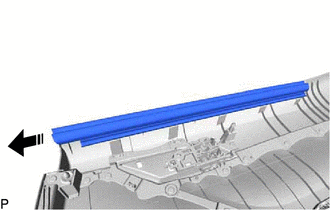

    1. Slide the rear door inner glass weatherstrip to remove it from the rear door trim board sub-assembly as shown in the illustration.
      GTY764646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER
    1. Disengage the clip.
      GTY743440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear door No. 2 service hole cover.

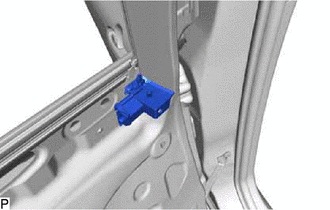

      GTY772689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. Disengage the 3 claws to remove the rear door inside handle sub-assembly.
      GTY759447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 7

  11. REMOVE REAR DOOR FRAME GARNISH
    1. Disengage the 2 claws to remove the rear door frame garnish.
      GTY772694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR SERVICE HOLE COVER
    1. Disconnect the connector.
      GTY759436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.
    3. Disengage the 8 clips to remove the rear door service hole cover.
      GTY759435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR DOOR NO. 1 VENT SEAL
    1. Remove the rear door No. 1 vent seal.
      GTY759437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR DOOR PANEL PROTECTOR
    1. Disengage the clip.
      GTY743439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear door panel protector.

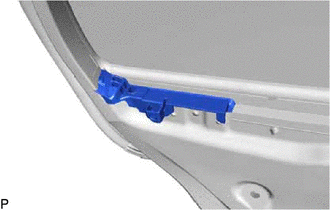

      GTY772690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DOOR GLASS RUN
    1. Remove the rear door glass run.
      GTY759433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR DOOR CHECK ASSEMBLY

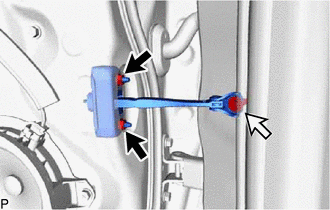

    1. Remove the 2 nuts, bolt and rear door check assembly.
      GTY757667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt
  17. REMOVE REAR DOOR WEATHERSTRIP
    1. Using a clip remover, disengage the 23 clips and remove the rear door weatherstrip.
      GTY741472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
  18. REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY

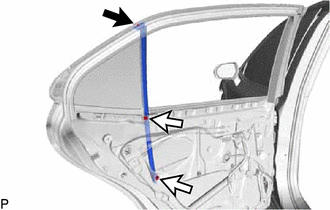

    1. Remove the screw, 2 bolts and rear door rear lower window frame sub-assembly.
      GTY745479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
  19. REMOVE REAR DOOR QUARTER WINDOW GLASS

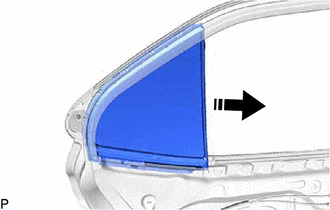

    1. Remove the rear door quarter window glass with rear door quarter window weatherstrip as shown in the illustration.
      GTY751947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the rear door quarter window glass from the rear door quarter window weatherstrip.
  20. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

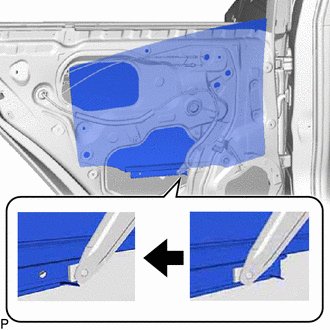

    1. Separate the rear door glass sub-assembly from the rear door window regulator assembly as shown in the illustration.
      GTY759427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      After separating the rear door glass sub-assembly, do not allow it to fall.

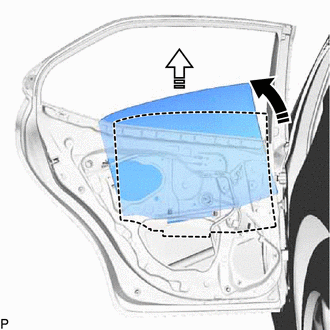

    2. Remove the rear door glass sub-assembly as indicated by the arrows, in the order shown in the illustration.
      NOTE:

      Do not damage the rear door glass sub-assembly.

      GTY748876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  21. REMOVE REAR DOOR GLASS CHANNEL SUB-ASSEMBLY

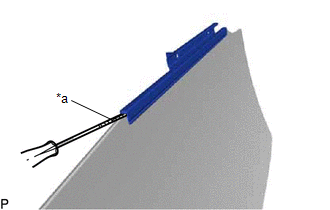

    1. Using a screwdriver, remove the rear door glass channel sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

      GTY752124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  22. REMOVE REAR DOOR GLASS CHANNEL FILLER
    1. Remove the rear door glass channel filler from the rear door glass sub-assembly.
  23. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY

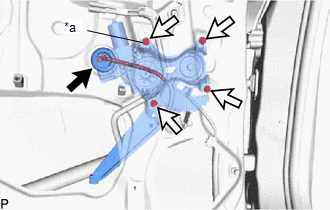

    1. Disconnect the connector.
    2. Loosen the temporary bolt.
      NOTE:

      Do not remove the temporary bolt. If the temporary bolt is removed, the rear door window regulator assembly may fall and cause damage.

      GTY755353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    3. Remove the 3 bolts and rear door window regulator assembly.
    4. Remove the temporary bolt from the rear door window regulator assembly.
  24. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 17

  25. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY

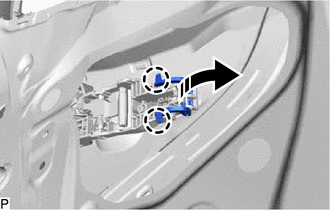

    1. Disengage the 2 claws and move the lever as shown in the illustration.
      GTY774693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disengage in this Direction
    2. Remove the rear door outside handle assembly as shown in the illustration.

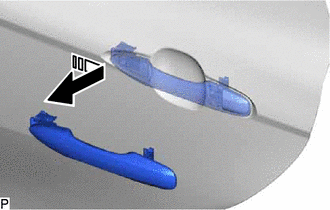

      GTY765166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE REAR DOOR OUTSIDE HANDLE COVER
    1. Using a T30 "TORX" socket wrench, loosen the screw.
      GTY759359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly.

    2. Disengage the claw to remove the rear door outside handle cover.
  27. REMOVE REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Disengage the 3 claws to remove the rear door front outside handle pad.
      GTY759362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR DOOR REAR OUTSIDE HANDLE PAD
    1. Disengage the claw and 3 guides to remove the rear door rear outside handle pad.
      GTY759361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Using a T30 "TORX" socket wrench, remove the screw.

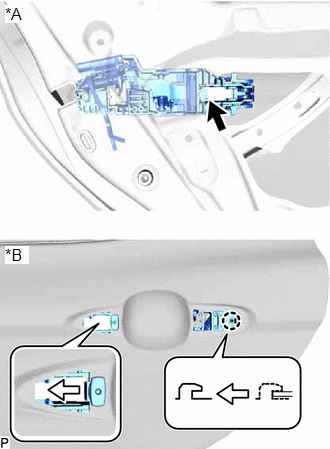

      GTY770340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Inside
      *B Outside
    2. Slide the rear door outside handle frame sub-assembly as shown in the illustration to disengage the claw and then remove it.
  30. REMOVE REAR DOOR PANEL CUSHION
    1. Disengage the 4 claws to remove the 2 rear door panel cushions.
      GTY772673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR DOOR NO. 2 WEATHERSTRIP
    1. Disengage the 5 clips to remove the rear door No. 2 weatherstrip.
      GTY759345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 17

  33. REMOVE DOOR WINDOW FRAME MOULDING CLIP

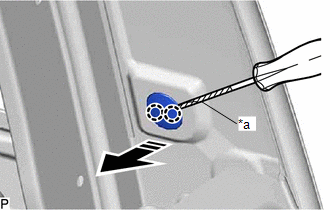

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the door window frame moulding clip.
      GTY744398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  34. REMOVE REAR DOOR FRONT WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 3

  35. REMOVE REAR DOOR FRONT OUTSIDE SEAL
    1. Disengage the guide to remove the rear door front outside seal.
      GTY772670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  37. REMOVE REAR DOOR LOWER OUTSIDE STRIPE

    Refer to PROCEDURE - Step 18

  38. REMOVE REAR DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - Step 19
