Removal [03/2017 - 06/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 06/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 12

  10. REMOVE REAR DOOR NO. 1 VENT SEAL

    Refer to PROCEDURE - Step 13

  11. REMOVE REAR DOOR PANEL PROTECTOR

    Refer to PROCEDURE - Step 14

  12. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 15

  13. DISCONNECT REAR DOOR WEATHERSTRIP
    1. Disconnect the rear door weatherstrip until the screw of the rear door rear lower window frame sub-assembly is visible.
  14. REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  15. REMOVE REAR DOOR QUARTER WINDOW GLASS

    Refer to PROCEDURE - Step 19

  16. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  17. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

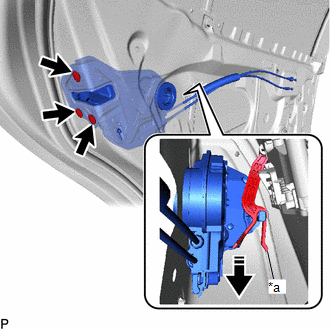

    1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      GTY764325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Plate
      Remove in this Direction
    2. Move the rear door lock with motor assembly downward to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock with motor assembly.
    3. When reusing the rear door lock with motor assembly:

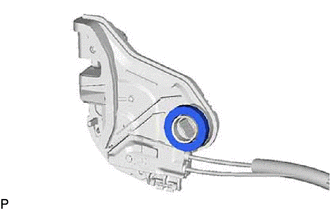

      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly.
        GTY769875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY

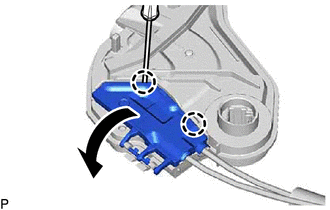

    1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      GTY746654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

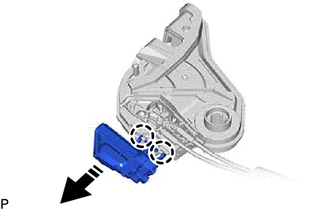

    2. Disengage the 2 claws to remove the rear door lock cover sub-assembly as shown in the illustration.
      GTY742592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

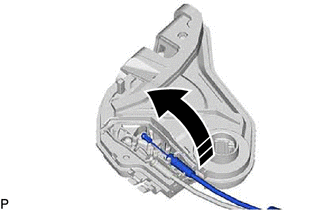

    1. Remove the rear door lock remote control cable assembly as shown in the illustration.
      GTY743847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

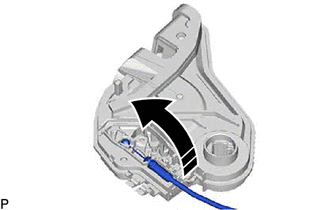

    1. Remove the rear door inside locking cable assembly as shown in the illustration.
      GTY745414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
