Reassembly [03/2017 - 09/2019]: Procedure

  1. INSTALL REAR SPOILER RETAINER (w/ Rear Spoiler)

    Refer to PROCEDURE - Step 1

  2. INSTALL REAR SPOILER (w/ Rear Spoiler)

    Refer to PROCEDURE - Step 2

  3. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION

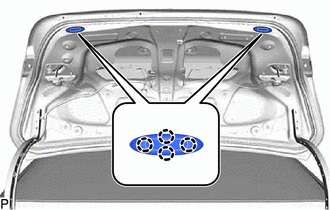

    1. Engage the 8 claws to install 2 new luggage compartment door cushions.
      GTY772677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL LICENSE PLATE LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  5. INSTALL LICENSE PLATE LIGHT ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  6. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

    See step  1

  7. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 2

  9. INSTALL REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - ]

  10. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  11. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

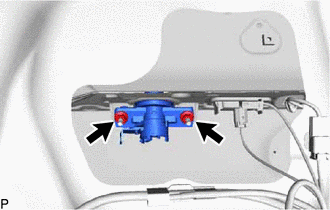

    1. Install the luggage compartment door lock cylinder assembly with the 2 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      GTY759378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 3 [06/2017 - 09/2019]

  13. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

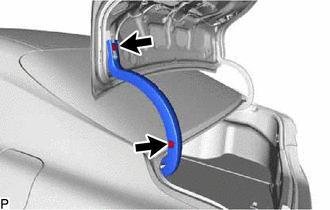

    1. Install the luggage compartment door hinge cover LH with the 2 clips.
      GTY759377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

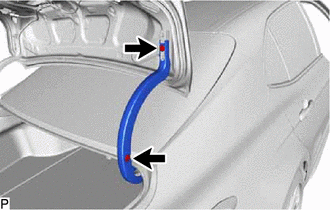

    1. Install the luggage compartment door hinge cover RH with the 2 clips.
      GTY759376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL LUGGAGE COMPARTMENT DOOR COVER

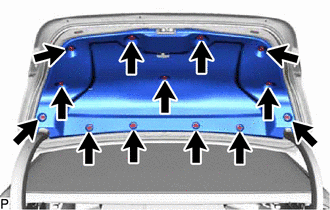

    1. Install the luggage compartment door cover with the 13 clips.
      GTY759373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
