Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY

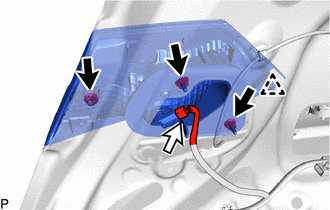

    1. Engage the clip.
      GTY773355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear light assembly with the 3 nuts.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    3. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 15
