Installation [06/2017 - ]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY
    1. For Bulb Type Back-up Light:
      1. Engage the clip.
        GTY773355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the rear light assembly with the 3 nuts.

        Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      3. Connect the connector.
    2. For LED Type Back-up Light:
      1. Engage the clip.

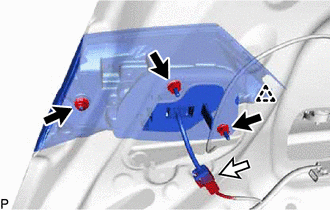

        GTY753301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the rear light assembly with the 3 nuts.

        Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      3. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 15 [03/2017 - 09/2019] , or refer to PROCEDURE - Step 15 [09/2019 - ]
