Reassembly [10/2020 - ]: Procedure

  1. INSTALL HOOD STAY BRACKET RH
    1. Engage the guide.

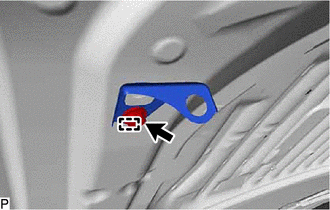

      GTY1015377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood stay bracket RH with the bolt.
  2. INSTALL HOOD SUPPORT ASSEMBLY
    1. Engage the 4 claws to install the hood support assembly.

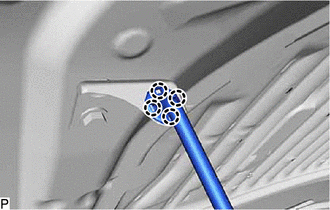

      GTY1015380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL HOOD STAY HOLDER
    1. Engage the 2 claws to install the hood stay holder.

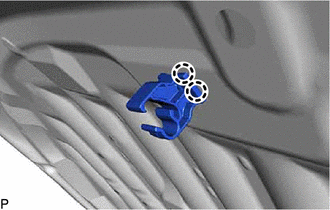

      GTY1015358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT WASHER HOSE ASSEMBLY
    1. Engage the grommet.

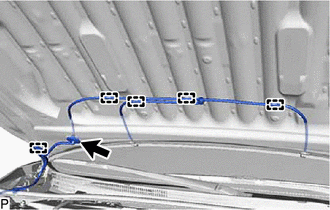

      GTY1015363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 clamps to connect the washer hose assembly.
  5. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to ADJUSTMENT [03/2017 - ]

  8. INSTALL HOOD INSULATOR
    1. Engage the 2 guides.

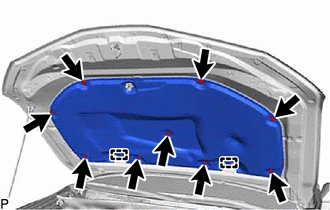

      GTY1015367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood insulator with 9 new hood insulator clips.
  9. INSTALL HOOD TO RADIATOR SUPPORT SEAL
    1. Install the hood to radiator support seal with 10 new hood to radiator support seal clips.

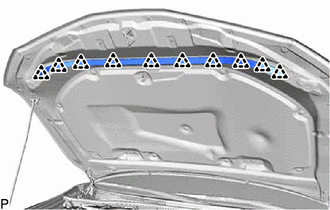

      GTY1015369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
