On-Vehicle Inspection [03/2017 - ]: Procedure
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
Standard

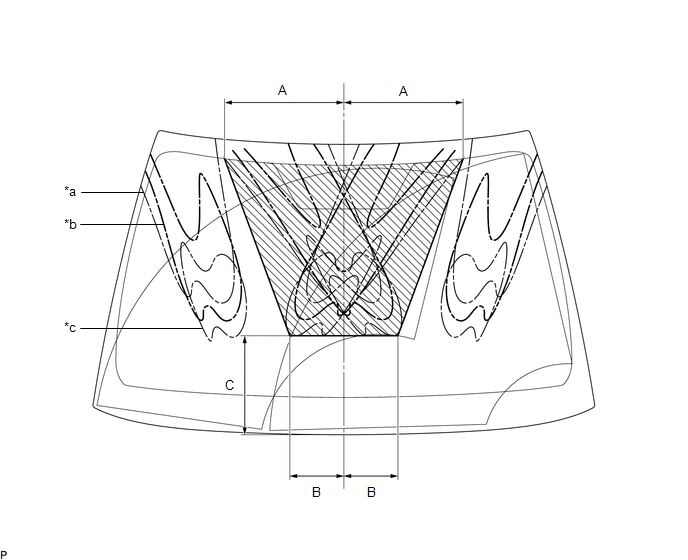

Center of washer fluid contacts the windshield in the areas shown in the illustration.
*a Upper Limit *b Standard *c Lower Limit - - Measurement - - Standard Measurement
Area Measurement Area Measurement A 35.8 cm (1.17 ft.) B 161.7 mm (6.37 in.) C 297.5 mm (11.7 in.) - - HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
