Installation [03/2017 - ]: Procedure

1. Connect a new washer nozzle sub-assembly to the washer hose.

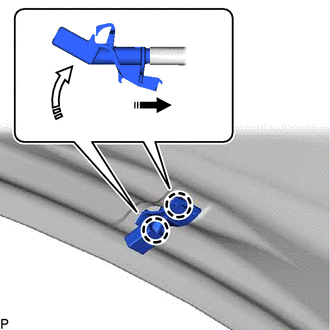

2. Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

Refer to ON-VEHICLE INSPECTION [03/2017 - ]

Refer to ADJUSTMENT [03/2017 - ]
