Reassembly [03/2017 - 10/2020]: Procedure

  1. INSTALL HOOD STAY BRACKET LH

    See step  2

  2. INSTALL HOOD SUPPORT ASSEMBLY LH

    See step  3

  3. INSTALL HOOD STAY BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  4. INSTALL HOOD SUPPORT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

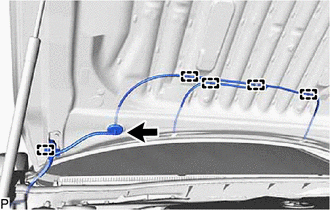

  5. CONNECT WASHER HOSE ASSEMBLY
    1. Engage the grommet.
      GTY746966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 clamps to connect the washer hose assembly.
  6. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to ADJUSTMENT [03/2017 - ]

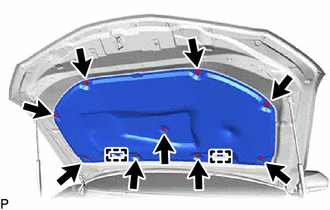

  9. INSTALL HOOD INSULATOR
    1. Engage the 2 guides.
      GTY746965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood insulator with 9 new hood insulator clips.

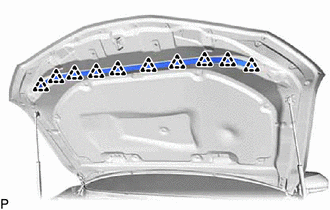

  10. INSTALL HOOD TO RADIATOR SUPPORT SEAL
    1. Install the hood to radiator support seal with 10 new hood to radiator support seal clips.
      GTY746968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
