Adjustment [03/2017 - ]: Procedure

See step  1

1. Horizontally and vertically adjust the hood.

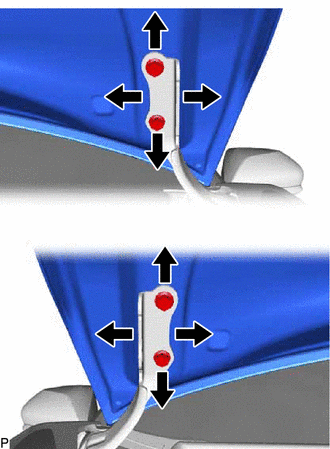

   1. Loosen the 4 hinge bolts of the hood.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Adjust the clearance between the hood and front fenders by moving the hood.
   3. Tighten the 4 hinge bolts after adjustment.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

2. Adjust the height of the front end of the hood using the hood bumper cushions.

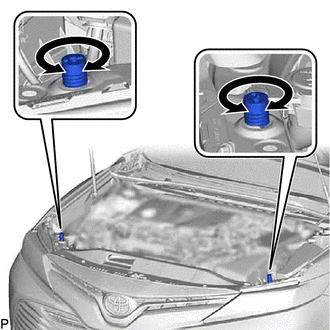

   1. Adjust the 2 hood bumper cushions so that the heights of the hood and fenders are aligned.

      HINT:

      Raise or lower the front end of the hood by turning the 2 hood bumper cushions.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Adjust the hood lock.
   1. Remove the cool air intake duct seal.

      Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 1 [10/2020 - ]

   2. Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Protective Tape

   3. Loosen the 2 bolts and hood lock bolt.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1	Hood Lock Bolt

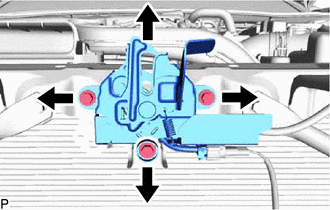

   4. Adjust the hood lock assembly and tighten the 2 bolts and hood lock bolt.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   5. Check that the striker can engage the hood lock assembly smoothly.

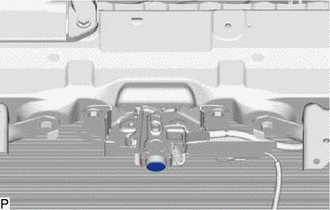

   6. Install a new hood lock nut cap.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   7. Install the cool air intake duct seal.

      Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 2 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - ]
