Removal [10/2020 - ]: Procedure

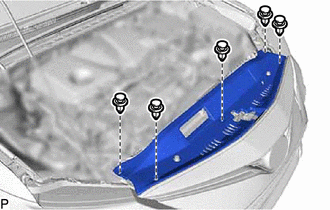

  1. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 5 clips.
      GTY1016311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

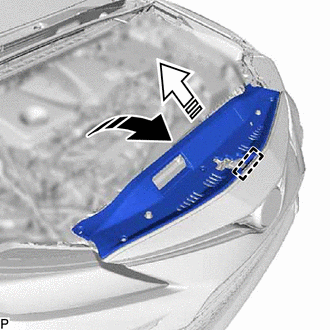

    2. Disengage the guide and remove the cool air intake duct seal as shown in the illustration.
      GTY1015797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE FRONT BUMPER ASSEMBLY

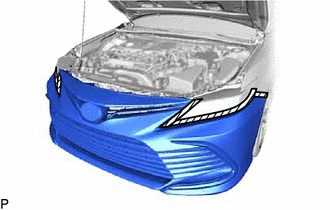

    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY1015916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

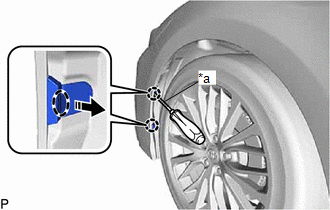

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
      GTY1017070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Remove the clip.
      GTY753255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

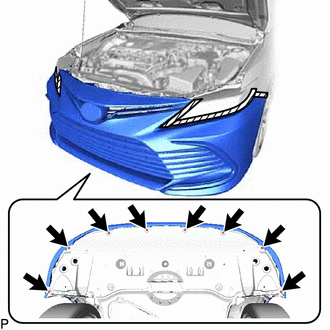

    4. Remove the 8 screws.
      GTY1016312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

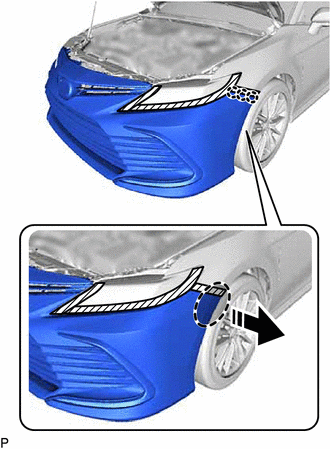

    5. Disengage the 3 claws as shown in the illustration.
      GTY1016055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

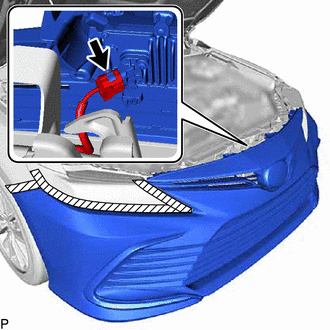

    6. w/ Pre-collision System:
      1. Disconnect the connector.
        GTY1016309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

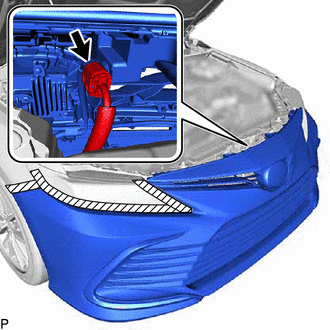

    7. w/ Parking Support Brake System:
      1. Disconnect the connector.
        GTY1016758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 2 clips.
      GTY1015874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 4 bolts.

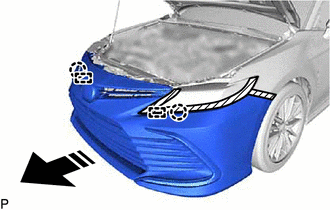

    10. Disengage the 2 claws and 2 guides to remove the front bumper assembly as shown in the illustration.
      GTY1014970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
