Removal [06/2017 - 10/2020]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 5 clips.
      GTY753251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the cool air intake duct seal as shown in the illustration.
      GTY763854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY762358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
      GTY763595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Remove the clip.
      GTY753255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the 8 screws.
      GTY771318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 3 claws as shown in the illustration.
      GTY755631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    6. w/ Pre-collision System:

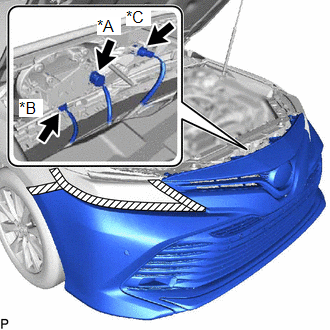

      GTY749962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Pre-collision System
      *B w/ Panoramic View Monitor System
      *C w/ Intuitive Parking Assist System
      1. Disconnect the connector.
    7. w/ Panoramic View Monitor System:
      1. Disconnect the connector.
    8. w/ Intuitive Parking Assist System:
      1. Disconnect the connector.
    9. Remove the 2 clips.
      GTY753250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the 4 bolts.

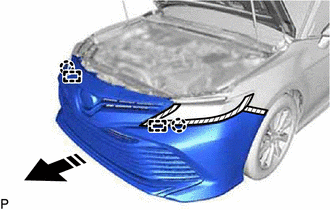

    11. Disengage the 2 claws and 2 guides to remove the front bumper assembly as shown in the illustration.
      GTY740849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
