Removal [03/2017 - 09/2019]: Procedure

  1. REMOVE NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - 09/2019]

  2. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 2 [06/2017 - 09/2019]

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 4 [06/2017 - 09/2019]

  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 22 [06/2017 - 10/2020]

  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 23 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 23 [06/2017 - 10/2020]

  6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 4

  7. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)

    Refer to PROCEDURE - Step 7 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 8 [06/2017 - 10/2020]

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

    Refer to PROCEDURE - Step 8 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 9 [06/2017 - 10/2020]

  9. REMOVE DCM (TELEMATICS TRANSCEIVER)

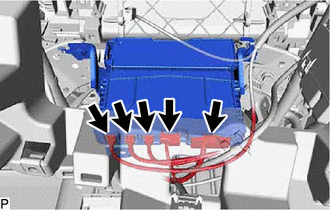

    1. Disconnect the 5 connectors.
      GTY762579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

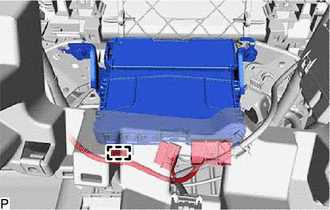

    2. Disengage the clamp.
      GTY762577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

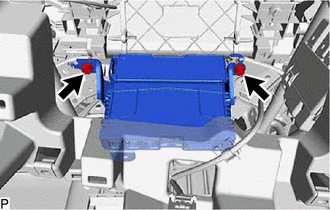

    3. Remove the 2 bolts.
      GTY762578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

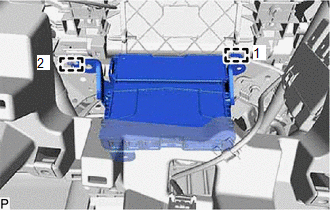

    4. Disengage the 2 guides in the order shown in the illustration to remove the DCM (telematics transceiver).
      GTY757138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
