Removal [06/2017 - 10/2020]: Procedure
- PRECAUTION (w/o Navigation System) NOTE:
- When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occurs:
- A communication malfunction DTC may be stored.
- The radio and display receiver assembly may not operate normally.
- When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occurs:
- PRECAUTION (w/ Navigation System) NOTE:
- When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
- A communication malfunction DTC may be stored.
- The radio and display receiver assembly or navigation ECU may not operate normally.
- After replacing the radio and display receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.
- When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
- REMOVE NO. 1 METER HOOD CLUSTER
Refer to PROCEDURE - Step 1 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 1 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 1 [03/2020 - ]
- REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 2 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 2 [03/2020 - ]
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 23
- REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)
Refer to PROCEDURE - Step 4
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
- Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
- Remove the 4 bolts.
- Disengage the 4 clips in the order shown in the illustration.
Place Hand Here Remove in this Direction - Disengage the 5 clips as shown in the illustration.
Place Hand Here Remove in this Direction - Disengage the 2 guides as shown in the illustration.
Remove in this Direction - - - Disconnect each connector and remove the radio and display receiver assembly with bracket.
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)
- Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
- Remove the 4 bolts.
- Disengage the 4 clips in the order shown in the illustration.
Place Hand Here Remove in this Direction - Disengage the 7 clips as shown in the illustration.
Place Hand Here Remove in this Direction - Disengage the 2 guides as shown in the illustration.
Remove in this Direction - - - Disconnect each connector and remove the radio and display receiver assembly with bracket.
- REMOVE TELLTALE LIGHT ASSEMBLY (for 7 Inch Display)
Refer to PROCEDURE - Step 2
- REMOVE MULTI-MEDIA MODULE WIRE (for 8 Inch Display)
- DISCONNECT NAVIGATION ECU WITH WIRE (w/ Navigation System)

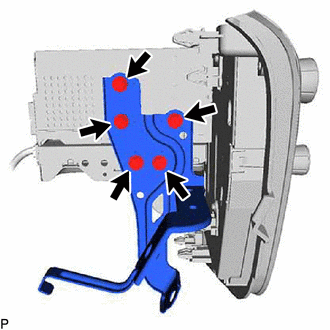

- REMOVE NO. 1 RADIO RECEIVER BRACKET

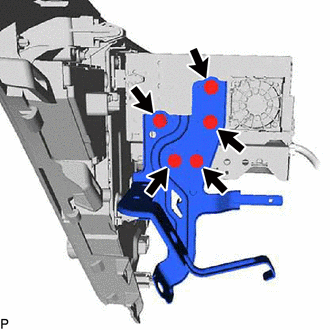

- REMOVE NO. 2 RADIO RECEIVER BRACKET
- REMOVE NAVIGATION ECU WITH WIRE (w/ Navigation System)
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
