Installation [12/2021 - ]: Procedure

  1. INSTALL COOLER CONDENSER ASSEMBLY

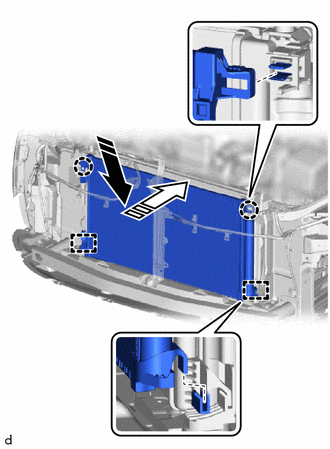

    1. Engage the guides and claws to install the cooler condenser assembly as shown in the illustration.
      GTY905232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
      NOTE:

      Do not damage the cooler condenser assembly or radiator assembly when installing the cooler condenser assembly.

      HINT:

      If a new cooler condenser assembly is installed, add compressor oil to the cooler condenser assembly as follows.

      Capacity

      Add 40 cc (1.35 fl. oz)

      Compressor Oil

      for VALEO Made

      VC100YF or equivalent

      for DENSO Made

      ND-OIL 12 or equivalent

  2. CONNECT COOLER REFRIGERANT LIQUID PIPE A (for VALEO Made)
    1. Remove the vinyl tape from the cooler refrigerant liquid pipe A and cooler condenser assembly.
    2. Apply sufficient compressor oil to a new O-rings and fitting surfaces of the cooler refrigerant liquid pipe A

      Compressor Oil

      VC100YF or equivalent

    3. Install the O-ring to the air cooler refrigerant liquid pipe A.
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the cooler refrigerant liquid pipe A to the cooler condenser assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  3. CONNECT COOLER REFRIGERANT LIQUID PIPE A (for DENSO Made)
    1. Remove the vinyl tape from the open ends of the cooler condenser assembly and cooler refrigerant liquid pipe A.
    2. Install a new piping clamp to the cooler refrigerant liquid pipe A.
      GTY803152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Air Conditioner Tube and Accessory Assembly
      *2 Piping Clamp
      *a Groove
      NOTE:
      • Securely engage the inside step of the piping clamp in the cooler refrigerant liquid pipe A groove.
      • Do not widen the opening of the piping clamp more than the diameter of the cooler refrigerant liquid pipe A when installing it.
      • Do not install the piping clamp with the large diameter section in the wrong direction.
    3. Thoroughly coat 2 new O-rings and the contact surface of the cooler refrigerant liquid pipe A with compressor oil.

      Compressor Oil

      ND-OIL 12 or equivalent

    4. Install the 2 O-rings to the cooler refrigerant liquid pipe A.
      NOTE:

      Do not let foreign matter adhere to the O-rings or O-ring seals.

    5. Engage the cooler condenser assembly and cooler refrigerant liquid pipe A.
      GTY610161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Large Diameter Section of Piping Clamp - -
      NOTE:

      Engage the parts by holding the pipe, not the piping clamp.

    6. Securely insert the piping clamp to the point where the large diameter section of the piping clamp is covered by the cooler condenser assembly.

      HINT:

      • When inserting, make sure that a click sound is heard.
      • Check that the cooler refrigerant liquid pipe A is securely inserted by pulling it.
  4. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the discharge hose sub-assembly and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the discharge hose sub-assembly.

      Compressor Oil

      for VALEO Made

      VC100YF or equivalent

      for DENSO Made

      ND-OIL 12 or equivalent

    3. Install the O-ring to the discharge hose sub-assembly.
    4. Connect the discharge hose sub-assembly to the cooler condenser assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  5. INSTALL NO. 1 RADIATOR AIR GUIDE LH

    Refer to PROCEDURE - Step 1

  6. INSTALL NO. 1 RADIATOR AIR GUIDE RH

    Refer to PROCEDURE - Step 2

  7. INSTALL FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 8

  8. INSTALL FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 10

  9. INSTALL NO. 2 RADIATOR AIR GUIDE

    Refer to PROCEDURE - Step 18

  10. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  11. INSTALL HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 4

  12. INSTALL HOOD LOCK NUT CAP

    Refer to PROCEDURE - Step 2

  13. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL

    Refer to PROCEDURE - Step 11

  14. INSTALL NO. 1 RADIATOR GRILLE RETAINER

    Refer to PROCEDURE - Step 12

  15. INSTALL FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  16. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 25

  17. INSTALL HEADLIGHT ASSEMBLY LH (for Single Beam Headlight)

    Refer to INSTALLATION [08/2020 - ]

  18. INSTALL HEADLIGHT ASSEMBLY RH (for Single Beam Headlight)

    HINT:

    Use the same procedure as for the LH side.

  19. INSTALL HEADLIGHT ASSEMBLY LH (for Triple Beam Headlight)

    Refer to INSTALLATION [12/2021 - ]

  20. INSTALL HEADLIGHT ASSEMBLY RH (for Triple Beam Headlight)

    HINT:

    Use the same procedure as for the LH side.

  21. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  22. WARM UP ENGINE

    Refer to PROCEDURE - Step 3

  23. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4

  24. ADJUST HOOD LOCK ASSEMBLY

    Refer to ADJUSTMENT [02/2017 - ]
