Installation [02/2017 - ]: Procedure

  1. INSTALL THERMOSTAT
    1. Install a new gasket to the thermostat.
    2. Install the thermostat to the water inlet housing.

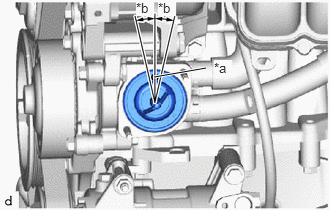

      GTY768769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Jiggle Valve
      *b 10°

      HINT:

      The jiggle valve may be set within 10° on either side of the prescribed position.

  2. INSTALL WATER INLET
    1. Install the water inlet with the 2 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  4. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  5. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 61 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 61 [10/2017 - 12/2021] , or refer to PROCEDURE - Step 61 [12/2021 - ]
