Removal [02/2017 - 10/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [02/2017 - 05/2018]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - STEP 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [02/2017 - 10/2017]

  3. REMOVE REAR DOOR REAR FRAME BRACKET

    Refer to PROCEDURE - STEP 3

  4. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - STEP 4

  5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL

    Refer to PROCEDURE - STEP 5

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 6

  7. REMOVE REAR DOOR TRIM BRACKET

    Refer to PROCEDURE - STEP 13

  8. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - STEP 15

  9. REMOVE REAR DOOR OUTSIDE HANDLE COVER

    Refer to PROCEDURE - STEP 29

  10. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY

    Refer to PROCEDURE - STEP 28

  11. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

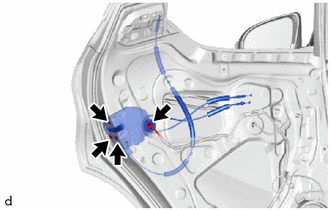

    1. Disconnect the connector.
      GTY741406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket wrench, remove the 3 screws and rear door lock with motor assembly.
    3. When reusing the rear door lock with motor assembly:

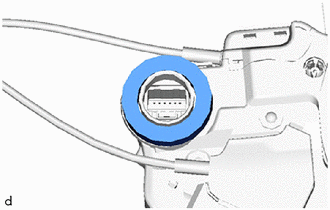

      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly.
        GTY741407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

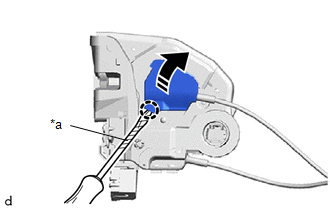

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw as shown in the illustration.
      GTY761552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Disengage the guide to remove the rear door lock remote control cable assembly from the rear door lock with motor assembly.
      GTY741416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

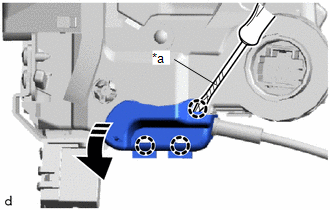

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      GTY749155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Disengage the guide to remove the rear door inside locking cable assembly from the rear door lock with motor assembly.
      GTY768752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      GTY746100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Disengage the guide to remove the No. 1 rear door lock remote control cable assembly from the rear door lock with motor assembly.
      GTY741418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
