Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SHIFT LEVER POSITION SENSOR
    1. Move the shift lever to N.

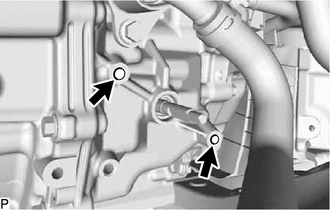

    2. Clean and degrease the 2 bolt holes of the hybrid vehicle transaxle assembly.
      GTY929599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the shift lever position sensor to the hybrid vehicle transaxle assembly with 2 new bolts.
      NOTE:
      • Do not reuse the shift lever position sensor if it has been dropped or subjected to a severe impact.
      • Do not allow moisture to adhere to the connector terminal.
    4. Install the lock plate to the shift lever position sensor with the lock nut.

      Torque: 6.9 N.m (70 kgf/cm, 61 in.lbf)

    5. Temporarily install the transmission control shaft lever to the shift lever position sensor.
    6. Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.
      GTY741264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the transmission control shaft lever from the shift lever position sensor.
    8. Align the indicator with the neutral basic line.
      GTY741927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Indicator
      *c Range of Play
      NOTE:

      The indicator of the lock plate has a certain amount of play. Align the center point of the range of play with the neutral basic line.

    9. Tighten the 2 bolts.

      Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

    10. Using a screwdriver with its tip wrapped with protective tape, secure the lock nut with the lock plate.
    11. Install the transmission control shaft lever and washer to the shift lever position sensor with the nut.

      Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

    12. Connect the shift lever position sensor connector.
  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Engage the 2 claws to install a new clip to the transmission control cable assembly.
    2. Using a screwdriver, engage the 4 claws and install the transmission control cable assembly to the No. 1 transmission control cable bracket.
      GTY746243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Control Cable Assembly
      *2 No. 1 Transmission Control Cable Bracket
      *a Claw (A)
      *b Claw (B)
      NOTE:
      • Make sure that the claws (A) of the clip are securely engaged in the grooves of the bracket.
      • Make sure that the transmission control cable assembly is securely installed inside of the claws (B) of the clip.
    3. Connect the transmission control cable assembly to the transmission control shaft lever with the nut.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  3. CONNECT MOTOR COOLING COOLER
    1. Temporarily connect the motor cooling cooler to the No. 1 transmission control cable bracket with the 3 bolts.

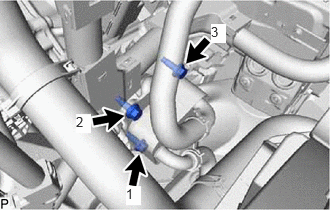

      Fig 1: No. 1 Transmission Control Cable Bracket Bolts Tightening Sequence
      GTY874068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 3 bolts in the order shown in the illustration.

      Torque: 11.5 N.m (117 kgf/cm, 8 ft.lbf)

  4. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 2 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - ]

  5. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 58 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 58 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 58 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 58 [12/2021 - ]

  6. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 3 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 3 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - ]

  7. INSPECT SHIFT LEVER POSITION SENSOR POSITION

    See step  2 [11/2018 - 02/2019], or see step  2 [02/2019 - ]

  8. ADJUST SHIFT LEVER POSITION SENSOR POSITION

    See step  3 [11/2018 - 02/2019], or see step  3 [02/2019 - ]

  9. INSPECT SHIFT LEVER POSITION

    See step  2 [11/2018 - 02/2019], or see step  2 [02/2019 - ]

  10. ADJUST SHIFT LEVER POSITION

    Refer to PROCEDURE - Step 4

  11. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 65 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 65 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 65 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 65 [12/2021 - ]

  12. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 66 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 66 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 66 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 66 [12/2021 - ]

  13. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 68 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 68 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 68 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 68 [12/2021 - ]

  14. INSTALL FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 67 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 67 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 67 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 67 [12/2021 - ]
