Adjustment [11/2018 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [11/2018 - 12/2021] , or refer to REMOVAL [12/2021 - ]

Refer to PROCEDURE - Step 3

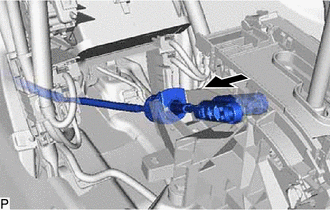

1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Slider
   *b	Lock Piece
   *c	Slide
   *d	Pull

3. Connect the transmission control cable assembly to the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Piece
   *b	Adjuster Case

   NOTE:

   • Check that the lock piece is pulled out.
   • Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.
   • Connect the transmission control cable assembly so that the lock piece faces the driver side.
4. Push the lock piece into the adjuster case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Piece
   *b	Push In
   *c	Adjuster Case

   NOTE:

   • Check that the shift lever position sensor and shift lever are in N.
   • Securely push in the lock piece until the slider lock is engaged.
   • Make sure that lever shaft position is not moved in shift direction during adjuster locking operation.
     • Do not touch lever shaft and knob during locking operation.
     • Do not pull or push adjuster case in shift direction during locking operation.
5. After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.

Refer to PROCEDURE - Step 3

Refer to INSTALLATION [11/2018 - 12/2021] , or refer to INSTALLATION [12/2021 - ]
