Adjustment [08/2021 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT AND ADJUST BRAKE PEDAL HEIGHT
    1. Remove the front door scuff plate LH.

      Refer to PROCEDURE - Step 3

    2. Remove the cowl side trim sub-assembly LH.

      Refer to PROCEDURE - Step 4

    3. Remove the No. 1 instrument panel under cover sub-assembly.

      Refer to PROCEDURE - Step 8

    4. Remove the accelerator pedal pad.

      Refer to PROCEDURE - Step 3

    5. Remove the accelerator pedal.

      Refer to PROCEDURE - Step 4

    6. Check the brake pedal height.

      HINT:

      Inspect and adjust the brake pedal height with the floor carpet and front floor mat folded back.

      1. Measure the shortest distance between the brake pedal pad surface and floor panel as shown in the illustration.

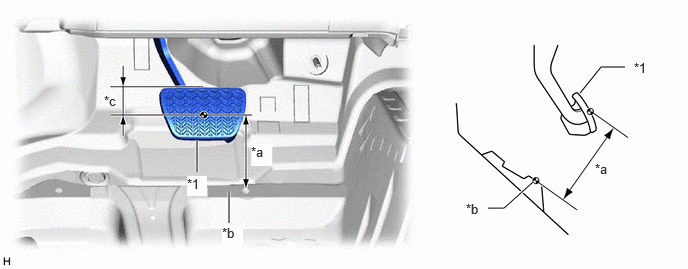

        GTY1026582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Brake Pedal Pad - -
        *a Brake Pedal Height *b Measuring Plane of Floor Panel
        *c 41 mm (1.61 in.) - -

        Brake Pedal Height from Floor Panel

        147.5 to 161.5 mm (5.81 to 6.36 in.)

        HINT:

        If the brake pedal height is not as specified, inspect and adjust the push rod length according to the procedure below.

    7. Adjust the push rod length.
      1. Remove the stop light switch assembly.

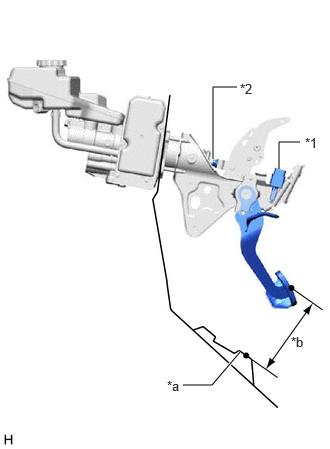

        GTY1026921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Stop Light Switch Assembly
        *2 Lock Nut
        *a Floor Panel
        *b Brake Pedal Height

        Refer to REMOVAL [04/2018 -]

      2. Loosen the lock nut.
      3. Adjust the brake pedal height by turning the push rod.

        Brake Pedal Height from Floor Panel

        147.5 to 161.5 mm (5.81 to 6.36 in.)

      4. Tighten the lock nut.

        Torque: 25.5 N*m (260 kgf*cm, 19 ft.*lbf)

      5. Install the stop light switch assembly.

        Refer to INSTALLATION [04/2018 -]

    8. Install the accelerator pedal.

      Refer to PROCEDURE - Step 1

    9. Install the accelerator pedal pad.

      Refer to PROCEDURE - Step 2

    10. Install the No. 1 instrument panel under cover sub-assembly.

      Refer to PROCEDURE - Step 47

    11. Install the cowl side trim sub-assembly LH.

      Refer to PROCEDURE - Step 29

    12. Install the front door scuff plate LH.

      Refer to PROCEDURE - Step 30

  2. INSPECT AND ADJUST BRAKE PEDAL STROKE SENSOR ASSEMBLY
    1. Inspect the brake pedal stroke sensor assembly.
      1. Connect the Techstream to the DLC3 with the power switch off.
      2. Turn the power switch on (IG).
      3. Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Stroke Sensor.

        Chassis > ABS/VSC/TRAC > Data List

        Tester Display
        Stroke Sensor
      4. Read the stroke sensor value without the brake pedal depressed.

        Standard Voltage (without the brake pedal depressed)

        0.8 to 1.2 V

        HINT:

        If the stroke sensor value is not within the standard voltage, adjust the brake pedal stroke sensor assembly.

    2. Adjust the brake pedal stroke sensor assembly.
      1. Remove the No. 1 instrument panel under cover sub-assembly.

        Refer to PROCEDURE - Step 8

      2. Loosen the 2 nuts.

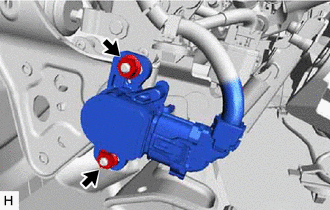

        GTY744093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Do not depress the brake pedal after turning the power switch on (IG).

      3. Read the stroke sensor value in the Data List, and turn the brake pedal stroke sensor assembly slowly to the right or left to adjust the output voltage so that it is within the following range.
        GTY744092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Voltage (without the brake pedal depressed)

        0.8 to 1.2 V

      4. Tighten the 2 nuts.

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      5. Turn the Techstream off and turn the power switch off.
      6. Disconnect the Techstream.
      7. Install the No. 1 instrument panel under cover sub-assembly.

        Refer to PROCEDURE - Step 47

    3. Perform linear solenoid valve offset learning, ABS holding solenoid valve learning, brake pedal stroke sensor assembly zero point calibration and system information memorization.

      Refer to INITIALIZATION [08/2021 -]

  3. INSPECT BRAKE PEDAL FREE PLAY
    1. Depress the brake pedal until a slight resistance is felt. Measure the distance as shown in the illustration.
      GTY434038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Brake Pedal Free Play

      Brake Pedal Free Play

      1.0 to 6.0 mm (0.0394 to 0.236 in.)

      HINT:

      • If the brake pedal free play is not as specified, check the stop light switch clearance.

        Refer to PROCEDURE - Step 1

      • If the brake pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure.
  4. INSPECT BRAKE PEDAL RESERVE DISTANCE

    HINT:

    Measure the distance at the same point used for the brake pedal height inspection.

    1. With the power switch on (READY), depress the brake pedal and measure the brake pedal reserve distance.

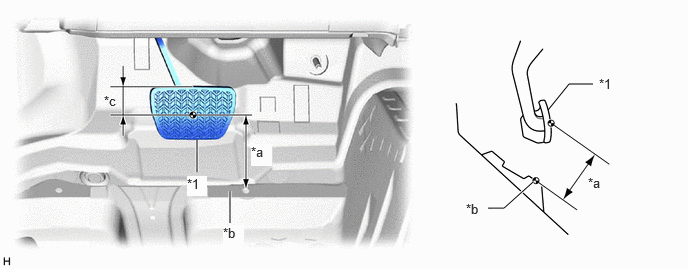

      GTY1026922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Brake Pedal Pad - -
      *a Brake Pedal Reserve Distance *b Measuring Plane of Floor Panel
      *c 41 mm (1.61 in.) - -

      Brake Pedal Reserve Distance from Floor Panel at 300 N (31 kgf, 67.4 lbf)

      85 mm (3.35 in.) or more

      HINT:

      If the distance is not as specified, troubleshoot the brake system.

      Refer to PROBLEM SYMPTOMS TABLE [04/2018 -]
