Removal [06/2015 - 01/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [06/2015 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to REMOVAL [06/2015 - ]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE INSTRUMENT PANEL CENTER REGISTER ASSEMBLY
Refer to PROCEDURE - Step 20

REMOVE NAVIGATION RECEIVER ASSEMBLY

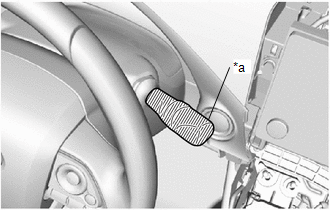

Wrap the windshield wiper switch assembly with protective tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

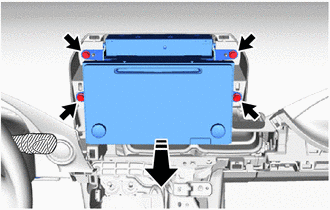

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull in the direction shown by the arrow in the illustration, and pull out the navigation receiver assembly.
Disconnect the connector to remove the navigation receiver assembly.

REMOVE NO. 1 NAVIGATION WIRE (w/ Satellite Radio)

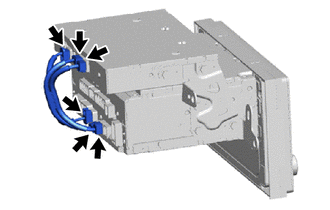

Disconnect the 6 connectors to remove No. 1 navigation wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 RADIO RECEIVER BRACKET (w/ Satellite Radio)

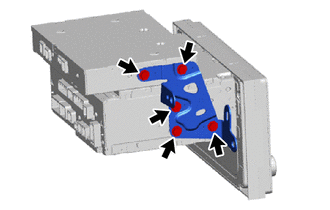

Remove the 5 bolts and No. 1 radio receiver bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 RADIO RECEIVER BRACKET (w/o Satellite Radio)

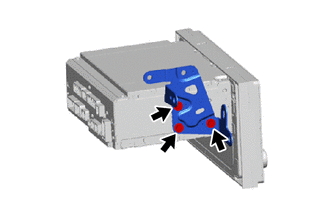

Remove the 3 bolts and No. 1 radio receiver bracket.

REMOVE NO. 2 RADIO RECEIVER BRACKET (w/ Satellite Radio)

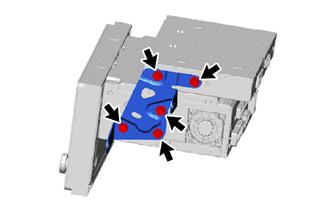

Remove the 5 bolts and No. 2 radio receiver bracket.

REMOVE NO. 2 RADIO RECEIVER BRACKET (w/o Satellite Radio)

Remove the 3 bolts and No. 2 radio receiver bracket.

REMOVE STEREO COMPONENT TUNER ASSEMBLY
1. Remove the stereo component tuner assembly.
