Reassembly [06/2015 - 11/2018]: Procedure

  1. INSTALL NO. 3 SIDE DEFROSTER NOZZLE DUCT

    HINT:

    Use the same procedure as for the No. 4 side.

  2. INSTALL NO. 4 SIDE DEFROSTER NOZZLE DUCT

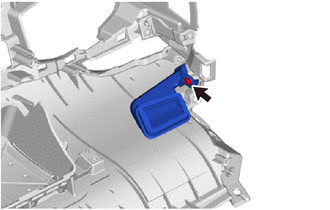

    1. Install the No. 4 side defroster nozzle duct with the screw <H>.
      GTY605253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NAVIGATION ANTENNA CORD

    Refer to PROCEDURE - Step 1 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 1 [01/2018 - ]

  4. INSTALL NAVIGATION ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL NO. 4 INSTRUMENT PANEL CUSHION

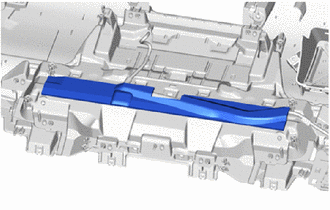

    1. Install a new No. 4 instrument panel cushion.
      GTY573261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/ Satellite Radio)

    Refer to PROCEDURE - Step 4 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 4 [01/2018 - 11/2018]

  7. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o Satellite Radio)

    Refer to PROCEDURE - Step 5 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 5 [01/2018 - 11/2018]

  8. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT

    HINT:

    Use the same procedures for the opposite side.

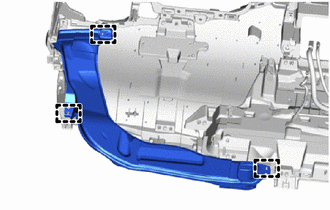

    1. Engage the guides to install the No. 1 side defroster nozzle duct.
      GTY594253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

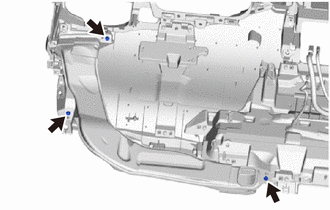

    2. Install the 3 screws <H>.
      GTY594284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 3 HEATER TO REGISTER DUCT

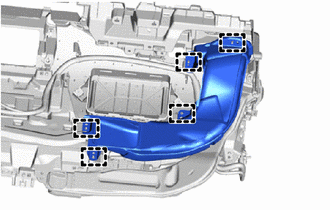

    1. Engage the guides to install the No. 3 heater to register duct.
      GTY594286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

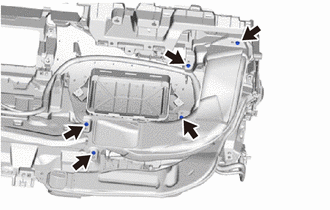

    2. Install the 5 screws <H>.
      GTY609983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 HEATER TO REGISTER DUCT

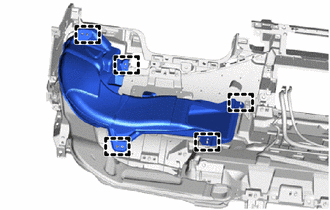

    1. Engage the guides to install the No. 1 heater to register duct.
      GTY594288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

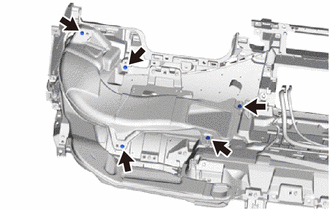

    2. Install the 5 screws <H>.
      GTY594293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 2

  12. INSTALL INSTRUMENT MAIN PANEL

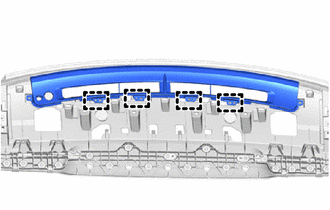

    1. Engage the guides to install the instrument main panel.
      GTY594296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

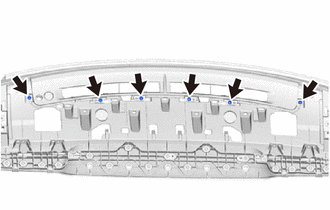

    2. Install the 6 screws <E>.
      GTY609985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SPARE SWITCH HOLE COVER

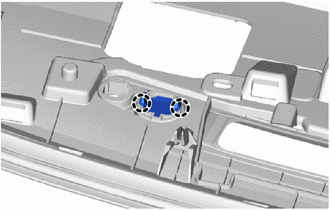

    1. Engage the claws to install the spare switch hole cover.
      GTY573263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

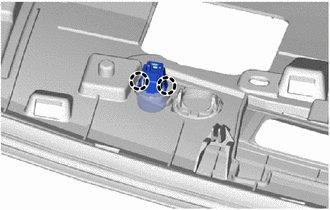

    1. Engage the claws to install the automatic light control sensor.
      GTY594289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 2 INSTRUMENT PANEL WIRE

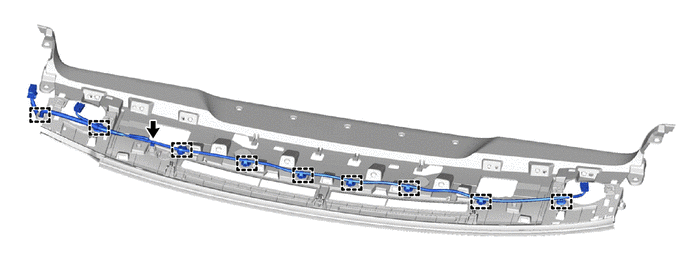

    1. Engage the clamps to install the No. 2 instrument panel wire.
      GTY594290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
