Installation [06/2015 - ]: Procedure

  1. INSTALL NAVIGATION ANTENNA ASSEMBLY

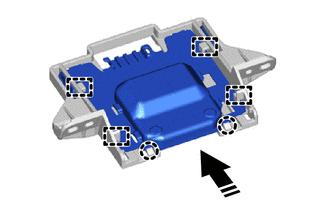

    1. Engage the guide to install the navigation antenna assembly as shown in the illustration.
      GTY570523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the claws.

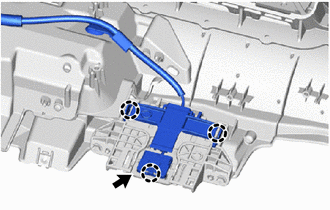

    3. Install the navigation antenna assembly with bracket with the 2 screws.
    4. Connect the connector.
      GTY556679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the claws.
  2. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  3. INSTALL NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 9 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 7 [11/2018 - ]

  4. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to INSTALLATION [06/2015 - 01/2018] , or refer to INSTALLATION [01/2018 - ]
