Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 12 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 12 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 12 [11/2018 - ]

  2. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

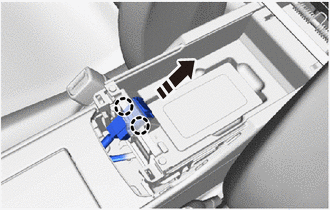

    1. Disengage the claws to remove the No. 1 stereo jack adapter assembly as shown in the illustration.
      GTY575183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

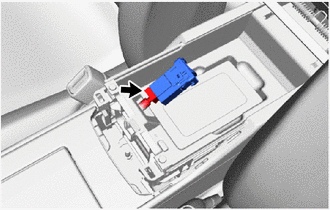

    2. Disconnect the connector.
      GTY580050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
