Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [10/2022 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  5. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 20

  7. DISCONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 6

  8. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 17

  9. REMOVE AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 8

  10. REMOVE FUEL DELIVERY GUARD
    1. GTY1076651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE EFI FUEL PIPE CLAMP
    1. GTY1076980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

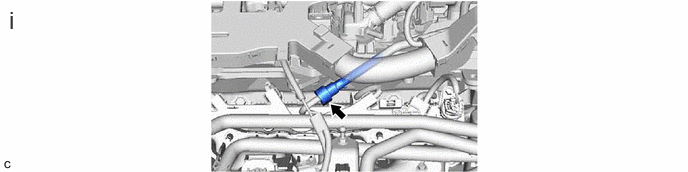

  12. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1108613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tube sub-assembly from the fuel delivery pipe.

        Refer to PRECAUTION [10/2022 - ]

  13. REMOVE FUEL DELIVERY PIPE
    1. GTY1105372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and fuel delivery pipe with the 4 port fuel injector assemblies from the cylinder head sub-assembly.
        NOTE:
        • If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.
        • Be careful not to drop the port fuel injector assemblies when removing the fuel delivery pipe.
  14. REMOVE FUEL DELIVERY SPACER
    1. GTY1076988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE INJECTOR VIBRATION INSULATOR
    1. GTY1076965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 5 ENGINE WIRE
    1. GTY1076967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE PORT FUEL INJECTOR ASSEMBLY
    NOTE:
    GTY993474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Attach a tag or label with the corresponding cylinder number to each port fuel injector assembly so that they can be installed to their original locations.
    • Cover the port fuel injector assemblies with plastic bags to prevent damage and contamination.
    1. GTY1076963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
