Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [10/2022 - ]

  2. DRAIN COOLANT (for Intercooler)

    Refer to REPLACEMENT [10/2022 - ]

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 23 [11/2023 - ]

  4. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY
    1. GTY1106546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  20

  6. DISCONNECT ENGINE WIRE
    1. GTY1109048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE PURGE VALVE (PURGE VSV)

    See step  17

  8. REMOVE AIR TUBE ASSEMBLY
    1. GTY1106846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 4 bolts and air tube assembly from the intercooler assembly.
      2. Remove the air tube gasket from the intercooler assembly.
  9. REMOVE FUEL DELIVERY GUARD
    1. GTY1106545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. GTY1106539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT NO. 1 TURBO WATER HOSE
    1. GTY1106538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE
    1. GTY1109047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. GTY1106540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT NO. 5 WATER BY-PASS HOSE (Type A)
    1. GTY1106565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT NO. 4 TURBO WATER HOSE
    1. GTY1106564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

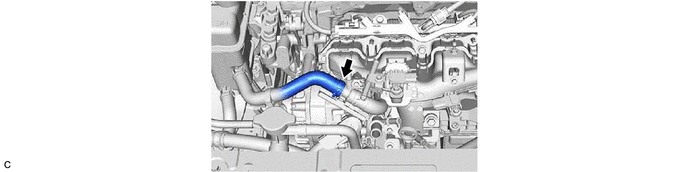

  16. DISCONNECT NO. 2 INTERCOOLER COOLING WATER HOSE
    1. GTY1106567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1106566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT NO. 5 WATER BY-PASS HOSE (Type B)
    1. GTY1109053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 13 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 13 [11/2023 - ]

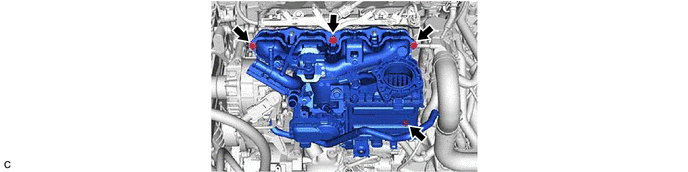

  20. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY
    1. GTY1106563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 7 INTERCOOLER COOLING WATER HOSE
    1. GTY1078223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1078227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 6 INTERCOOLER COOLING WATER HOSE
    1. GTY1080375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1080377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE INTERCOOLER ASSEMBLY
    1. GTY1105069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 nuts and bolts to separate the intercooler assembly from the intake manifold and No. 2 air tube.
      2. Using an 8 mm socket wrench, remove the bolt and No. 2 turbo pressure sensor from the intercooler assembly.
      3. Remove the No. 2 air tube gasket from the intercooler assembly.
      4. Remove the No. 1 intake manifold to head gasket from the intake manifold.
