On-Vehicle Inspection [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 1
- INSPECT REAR ENGINE MOUNTING INSULATOR

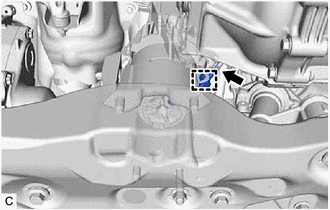

- Disengage the clamp to separate the vacuum hose.
- Disconnect the vacuum hose.

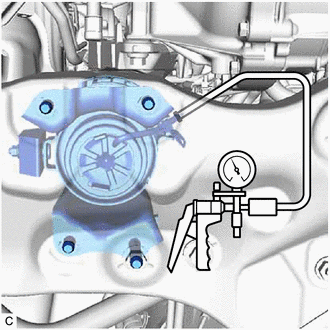

- Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.
- Check that there is no change in the needle movement of the vacuum pump gauge.
OK
Vacuum pressure holds.
- Check that there is no fluid leakage caused by a break in the diaphragm.
- Connect the vacuum hose.
- Engage the clamp to install the vacuum hose.
- Disengage the clamp to separate the vacuum hose.
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 6
