Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

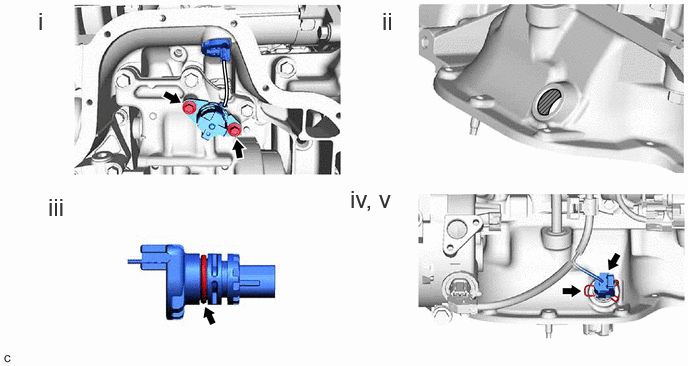

- INSTALL ENGINE OIL LEVEL SENSOR
- Using an 8 mm socket wrench, install the engine oil level sensor to the engine balancer assembly with the 2 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Remove any dirt or foreign matter from the engine oil level sensor connector installation hole.
- Apply a light coat of engine oil to the O-ring of the engine oil level sensor.
- Install a new clip to the engine oil level sensor.
- Connect the engine oil level sensor connector.
- Using an 8 mm socket wrench, install the engine oil level sensor to the engine balancer assembly with the 2 bolts.
- INSTALL NO. 2 OIL PAN SUB-ASSEMBLY
Refer to PROCEDURE - Step 10
- ADD ENGINE OIL
Refer to PROCEDURE - Step 5
- INSPECT FOR ENGINE OIL LEAK
Refer to PROCEDURE - Step 6
- CHECK ENGINE OIL LEVEL
Refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
