Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

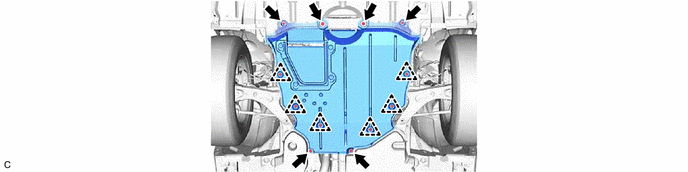

  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
    1. GTY1106226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 56

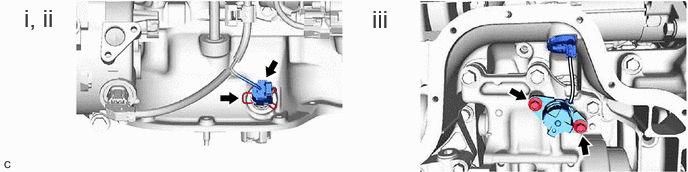

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. GTY1104781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine oil level sensor connector.
      2. Remove the clip from the engine oil level sensor.
      3. Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from engine balancer assembly.
