Removal [04/2018 - 08/2019]: Procedure

  1. PRECAUTION
    NOTE:

    Make sure to select face mode before disconnecting the cable from the negative (-) auxiliary battery terminal.

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  3. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [04/2018 -]

  4. REMOVE FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. DISCONNECT OUTLET HEATER WATER HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the outlet heater water hose.
      GTY945443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the outlet heater water hose.
      • Prepare a drain pan or cloth in case the coolant leaks.
  6. DISCONNECT INLET HEATER WATER HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the inlet heater water hose.
      NOTE:
      • Do not apply excessive force to the inlet heater water hose.
      • Prepare a drain pan or cloth in case the coolant leaks.
      GTY925429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT SUCTION PIPE SUB-ASSEMBLY
    1. Remove the bolt and rotate the hook connector as shown in the illustration.
      GTY925428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the suction pipe sub-assembly.
      GTY925427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the suction pipe sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  8. DISCONNECT AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY
    1. Disconnect the air conditioning tube and accessory assembly.
      GTY945441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the air conditioning tube and accessory assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  9. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [04/2018 - 08/2020]

  10. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to REMOVAL [04/2018 -]

  12. REMOVE STEERING COLUMN ASSEMBLY

    for Manual Tilt and Manual Telescopic Steering Column:

    Refer to REMOVAL [04/2018 - 08/2021]

    for Power Tilt and Power Telescopic Steering Column:

    Refer to REMOVAL [04/2018 - 08/2021]

  13. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

  14. REMOVE ECU INTEGRATION BOX RH

    Refer to PROCEDURE - Step 3

  15. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to PROCEDURE - Step 3

  16. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

    Refer to PROCEDURE - Step 10

  17. REMOVE NO. 1 CLEARANCE WARNING BUZZER (w/ Intelligent Parking Assist System)

    Refer to PROCEDURE - Step 9

  18. REMOVE DRIVING SUPPORT ECU ASSEMBLY

    Refer to PROCEDURE - Step 2

  19. REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR
    1. Disconnect the connector and aspirator to remove the cooler (room temp. sensor) thermistor.
      GTY925391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE ACCELERATOR PEDAL PAD

    Refer to PROCEDURE - Step 3

  21. REMOVE ACCELERATOR PEDAL

    Refer to PROCEDURE - Step 4

  22. REMOVE REAR NO. 2 AIR DUCT
    1. GTY925390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the front floor carpet clip.

    2. GTY925389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 front floor carpet clips.

    3. Disengage the 2 guides and turn back the front floor carpet assembly as shown in the illustration.
      GTY925388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 claws and remove the rear No. 2 air duct as shown in the illustration.
      GTY884550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  23. REMOVE REAR NO. 1 AIR DUCT
    1. GTY925402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 claws and remove the rear No. 1 air duct.

  24. REMOVE REAR NO. 4 AIR DUCT
    1. GTY925401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the front floor carpet clip.

    2. Remove the 2 front floor carpet clips.
      GTY945436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides and turn back the front floor carpet assembly as shown in the illustration.
      GTY925400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 claws and remove the rear No. 4 air duct as shown in the illustration.
      GTY873811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  25. REMOVE REAR NO. 3 AIR DUCT
    1. Disengage the 2 claws and remove the rear No. 3 air duct.
      GTY945432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FLOOR CARPET BRACKET RH
    1. Remove the clip.
      GTY891685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claw to remove the floor carpet bracket RH as shown in the illustration.
  27. REMOVE FLOOR CARPET BRACKET LH
    1. Remove the clip.
      GTY844757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claw to remove the floor carpet bracket LH as shown in the illustration.
  28. REMOVE NO. 1 CONSOLE BOX DUCT
    1. Remove the No. 1 console box duct as shown in the illustration.
      GTY921376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  29. REMOVE NO. 3 DASH PANEL INSULATOR PAD
    1. Cut each claw of the 2 clips and remove the No. 3 dash panel insulator pad.
      GTY914267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cut
      NOTE:

      If the No. 3 dash panel insulator pad is damaged, replace it with a new one.

    2. Remove the 2 clips.
  30. REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

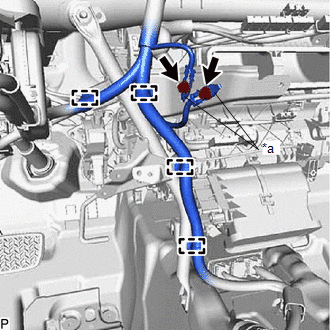

    1. Remove the 2 bolts and disconnect the 2 earth wires.
      GTY891424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Earth Wire
    2. Disengage each clamp.
    3. Remove the bolt, screw, nut and No. 1 instrument panel brace sub-assembly.
      GTY886162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
      Nut
  31. REMOVE NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Remove the bolt (A) and disconnect the earth wire.
      GTY879160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Earth Wire
      *b Relay Block Holder
      Bolt (A)
      Bolt (B)
    2. Remove the bolt (B).
    3. Disengage each clamp to separate the relay block holder.
    4. Remove the bolt, screw, nut and No. 2 instrument panel brace sub-assembly.
      GTY934142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
      Nut
  32. REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
    1. Disengage each clamp.
      GTY881094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    2. Remove the bolt, nut and No. 3 instrument panel to cowl brace sub-assembly.
  33. REMOVE HYBRID VEHICLE CONTROL ECU

    Refer to PROCEDURE - Step 3

  34. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Refer to PROCEDURE - Step 3

  35. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY
    NOTE:
    • Be sure to support the air conditioner unit assembly when removing it. Failure to do so may cause the bracket of the air conditioner unit assembly to break.
    • When disassembling the air conditioner unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

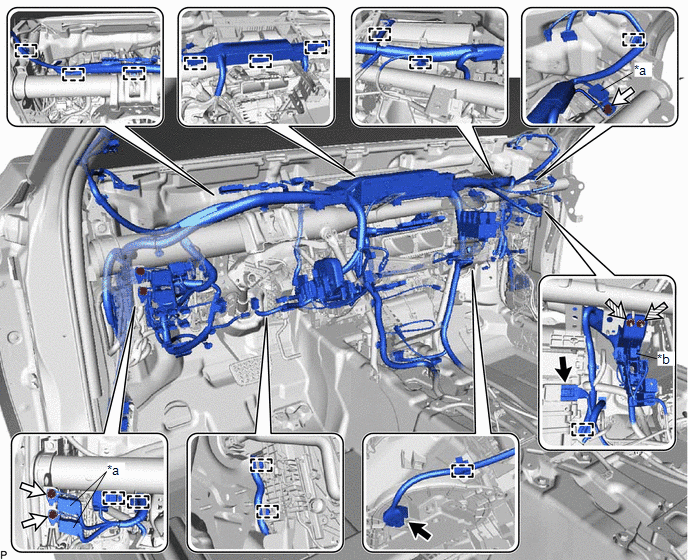

    1. Disconnect the 2 connectors.
      GTY869386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Earth Wire *b Connector Holder
      Connector Bolt
      Nut - -
    2. Remove the 3 bolts and disconnect the 3 earth wires.
    3. Remove the 2 nuts and disconnect the connector holder.
    4. Disengage each clamp.
    5. Push down the part (A) in the direction indicated by the arrow (1), to release the lock, and then move the lock lever in the direction indicated by the arrow (2) shown in the illustration to disconnect the connector.
      GTY942307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Release (1)
      Move in this Direction (2)
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

    6. Disconnect the connector.
    7. Disengage each clamp to separate the instrument panel wire.
    8. Turn back the front floor mat as shown in the illustration.
      GTY925559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disconnect the drain cooler hose.
      GTY932077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cooler Unit Drain Hose Grommet
      NOTE:

      If the drain cooler hose is disconnected from the cooler unit drain hose grommet, make sure to replace the cooler unit drain hose grommet with a new one. Failure to do so may lead to water ingress.

    10. Remove the cooler unit drain hose grommet.
      GTY925560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Remove the 2 hole plugs.
      GTY925568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Remove the 3 bolts.
      GTY925567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Remove the 4 bolts (A).
      GTY870953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A) Bolt (B)
      Nut - -
    14. Remove the bolt (B) and disconnect the brake pedal assembly.
    15. Remove the nut.
    16. Disengage each clamp.
      GTY887420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    17. Disconnect each connector.
    18. Remove the instrument panel reinforcement assembly with air conditioner unit assembly as shown in the illustration.
  36. REMOVE AIR CONDITIONER UNIT ASSEMBLY
    1. Remove the 3 bolts.
      GTY925607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the air conditioner unit assembly from the instrument panel reinforcement assembly.
